PRODUCT DETAILS

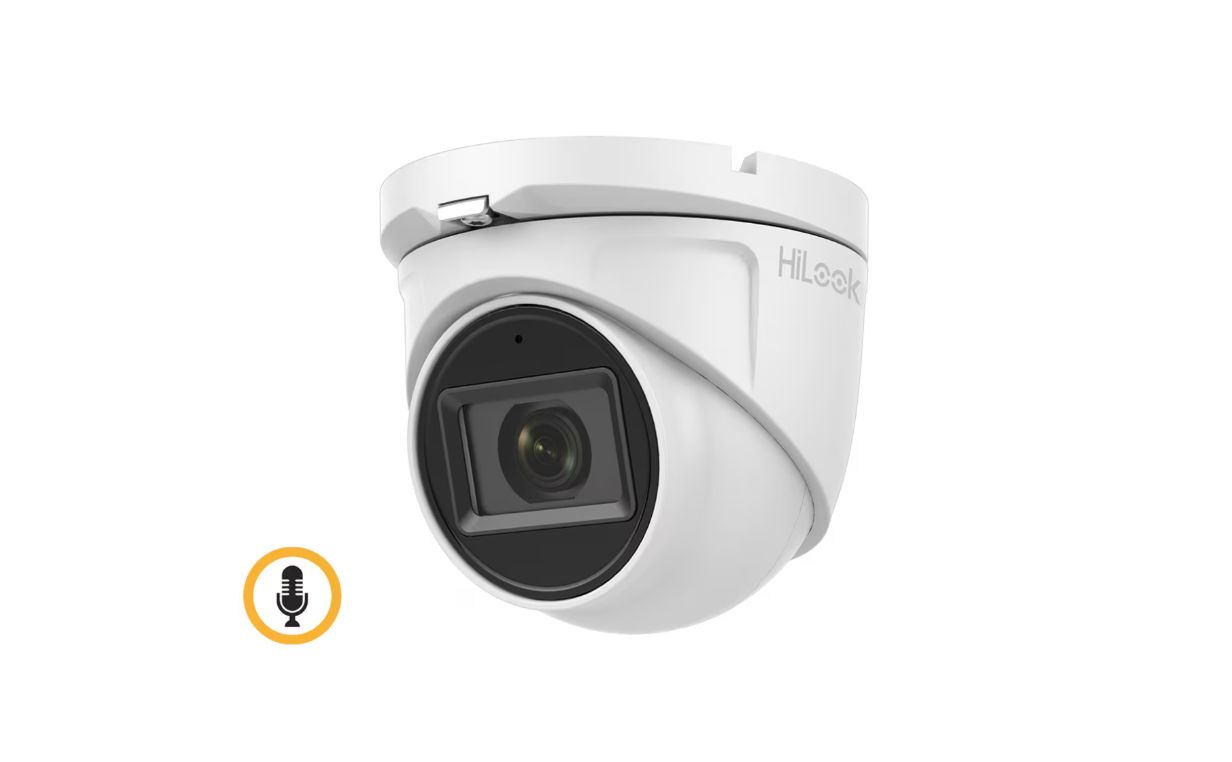

The HiLook THC-T150-MS is a 5MP TVI mini turret camera with a 2.8mm or 3.6mm fixed lens and a built-in microphone for real time audio security. Digital WDR provides clear imaging, even in backlit conditions and the camera signal and can be switched between several analogue video formats including TVI, CVI, AHD and CVBS allowing it to be used on most modern CCTV recorders.
Features:
- 5 MP coaxial audio camera
- Enhanced safety with discreet and economical built-in microphone
- 2.8 mm or 3.6mm fixed focal lens
- Digital WDR
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECIFICATIONS
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Colour: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm and 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR, AGC |
| Frame Rate | TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| Interface | |
| Video Output | 1 HD analogue output |
| General | |
| Material | Metal |

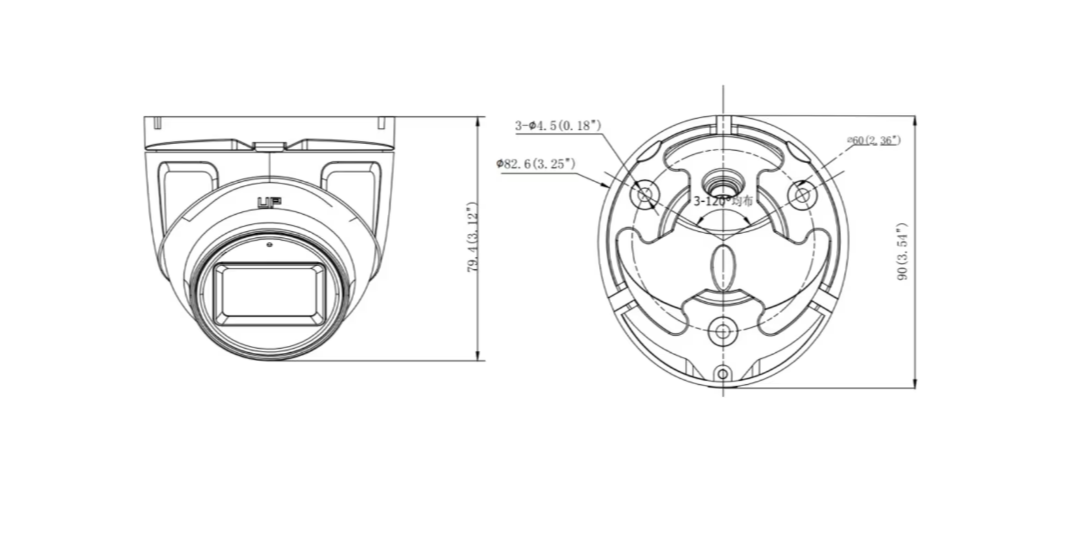

| Dimension | Ø 82.6 mm × 69.66 mm (Ø 3.25" × 2.74") |
| Weight | Approx. 230 g (0.51 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 20 m |
| Approval | |
| Protection | IP66 |
