All our products come with exceptional customer care.If you encounter any technical challenges, you have direct access to our in-house team of highly experienced specialists. When you get in touch, our customer service team will coordinate with our technical department to find a swift solution for you. Our technical services cover everything from simple configuration questions and password resets to complex fault diagnosis.
*HILOOK PRODUCTS ONLY: Please note that the hard drive will NOT be pre-installed in the recorder and must be installed separately by the user.

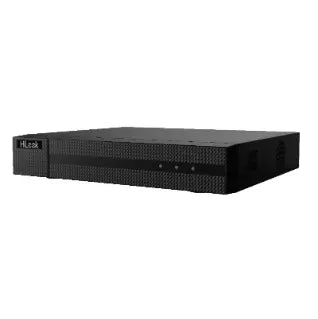

The HiLook DVR-208U-M1 is an 8-channel 4K hybrid analogue digital video recorder with 8 analogue BNC inputs and up to16 IP cameras.
This DVR also features deep learning-based Motion Detection 2.0, which enables the cameras to only send alerts when a human or vehicle is detected, whilst ignoring non-events such as animals or tress blowing in the wind. It has H.265+ compression technology, greatly reducing the use of bandwidth and hard drive storage space.
Key Features:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- HDTVI/AHD/CVI/CVBS/IP video inputs
- 8 analog channels and 1 HDD 1U DVR
- Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
- Up to 1ch 8 MP/5ch 1080p decoding capacity
- Efficient H.265 Pro+ compression technology
- Up to 16 network cameras can be connected
- Smart search/smart playback
- Compatible with major Wi-Fi dongle products in the market
- HiLookVision & DDNS (Dynamic Domain Name System) for easy network management
View or Download product specifications
Interface
| Number |
Description |
Number |
Description |
|---|---|---|---|
| 1 |
Video and coaxial audio in |
5 |
AUDIO IN, RCA connector |
| 2 |
HDMI interface |
6 |
LAN network interface and USB interface |
| 3 |
VGA interface |
7 |
12 VDC power input |
| 4 |
AUDIO OUT, RCA connector |
8 |
GND |
