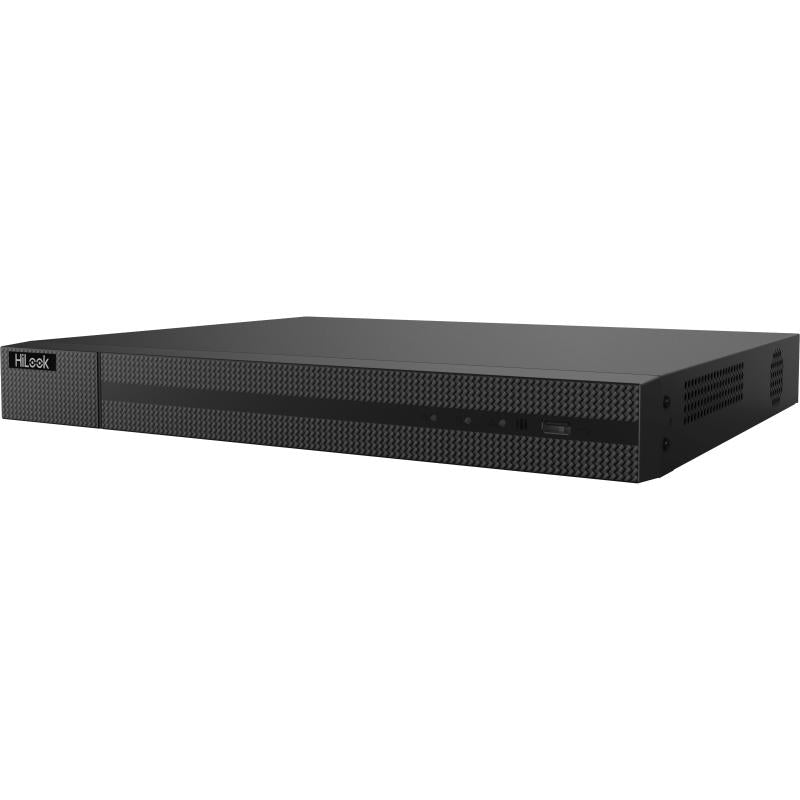

The HiLook NVR-208MH-C/8P(D) is an 8 channel IP CCTV network video recorder that supports 8 plug-and-play IP PoE powered IP cameras at up to 8 mega-pixel resolution and 2 SATA hard drives at up to 8TB each. It features deep learning-based motion detection 2.0 technology on all channels which only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind.
Features:
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
- 4-ch Motion Detection 2.0
- Support multiple VCA (Video Content Analytics) events
- 8 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- HiLookVision for easy network management
Specification
| Video and Audio | |
| IP Video Input | 8-ch |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264 |
| Decoding Capability | 4-ch@1080p |
| Synchronous playback | 8-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network | |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | No |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 48V| ,2.5A MAX |
| Consumption | ≤ 15W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 2.6 kg (5.7 lb) |
