All our products come with exceptional customer care.If you encounter any technical challenges, you have direct access to our in-house team of highly experienced specialists. When you get in touch, our customer service team will coordinate with our technical department to find a swift solution for you. Our technical services cover everything from simple configuration questions and password resets to complex fault diagnosis.
All Reolink products have remote view via the HiLookVision app. We have a handwritten guide to help making setting this up as easy as possible.

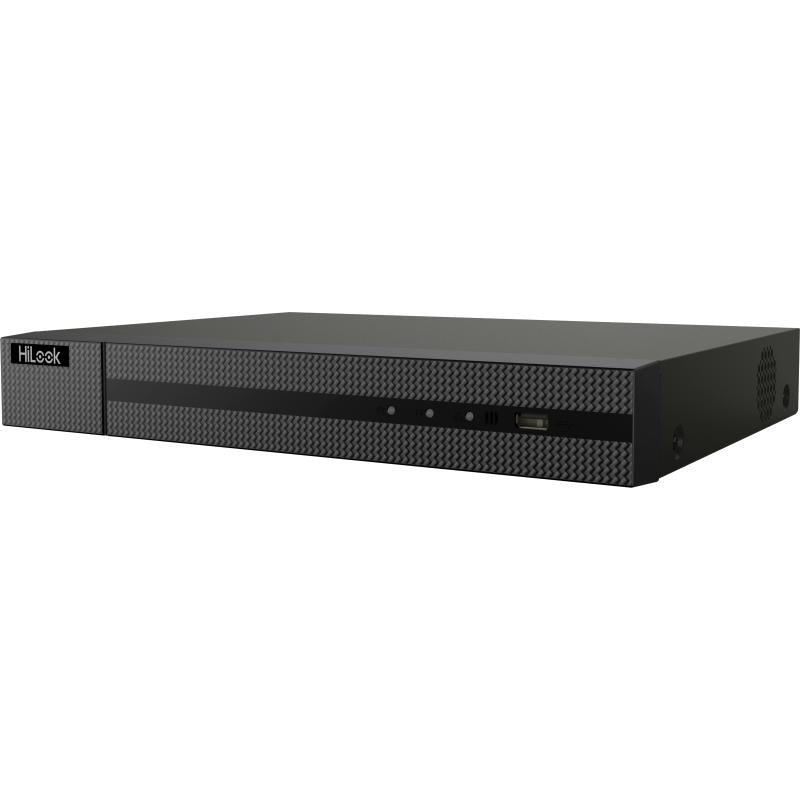

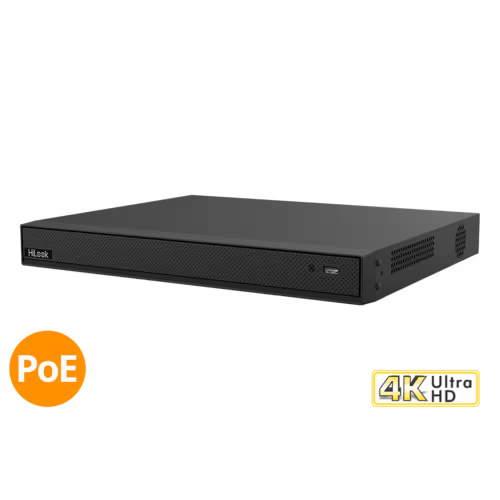

The HiLook NVR-216MH-C/16P(E) is an IP CCTV network video recorder with 16 PoE channels, that supports 16 plug-and-play IP cameras at up to 8 mega-pixel resolution and 2 3.5" SATA hard drive at up to 8TB.
The NVR-216MH-C/16P supports H.265+ compression when used with compatible H.265+ IP network cameras. This reduces bandwidth and reduces the storage required enabling recorded footage to be stored for much longer than standard recorders.
Features:
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
- 4-ch Motion Detection 2.0
- Support multiple VCA (Video Content Analytics) events
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- HiLookVision for easy network management
| Video and Audio | |
| IP Video Input | 16-ch |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Decoding Capability | 4-ch@1080p |
| Synchronous playback | 16-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network | |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16-ch |
| Power | ≤ 150W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | No |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 100-240V～, 50/60Hz, 3.2A MAX |
| Consumption | ≤ 15W |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 2.6 kg (5.7 lb) |
