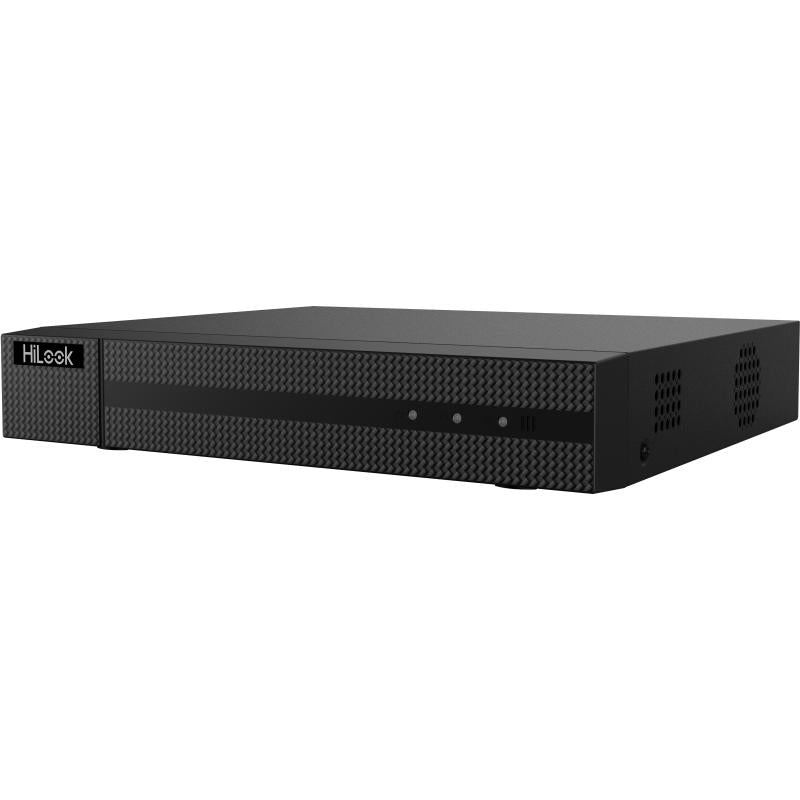

The HiLook DVR-216G-M1/T is an 2MP hybrid digital video recorder (DVR) with 16 analogue BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras, and 18 IP cameras up to 5MP. It features intelligent deep learning-based human and vehicle targets classification of Motion Detection 2.0 that only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind. It also provides the audio signal over coax cable, removing the need for a separate audio cable and reducing installation times.
Features:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Support all channels HDTVI two-way audio technology
Motion Detection 2.0
Hikvision has upgraded its Motion Detection with its AcuSense technology. This takes motion detection to the next level with features that distinguish human beings and vehicles from other objects in any given environment, and tools that make video searches as smart and quick as possible.
The first key way that Hikvision Motion Detection 2.0 improves security is by allowing users to easily configure alerts when people or vehicles enter an environment. If an area is usually busy with visitors or pedestrians, the systems can be configured to ignore certain areas of the screen and only generate alerts if a person or vehicle enters an unauthorized zone, for example. With automated alerts for vehicles or people entering restricted areas, security teams can respond much more quickly and effectively to potential security breaches – helping to increase protection for people and assets.
The second major advantage of Motion Detection 2.0 is the ability to search video footage based on the appearances of people or vehicles during a specific period of time. Users can call up and playback video clips of people and vehicles that have been recorded on back-end devices like NVRs or DVRs, with no need to pore over hours of video footage.
This feature means that hours or even days of security footage can be reviewed in just a few minutes and that teams can quickly find high-quality video images of critical security breaches that have occurred.
Specification
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Video and Audio | |
| IP Video Input | 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 16-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1, SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 2 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) |
| ≤ 1.1 kg (without HDD, 2.4 lb.) | |
