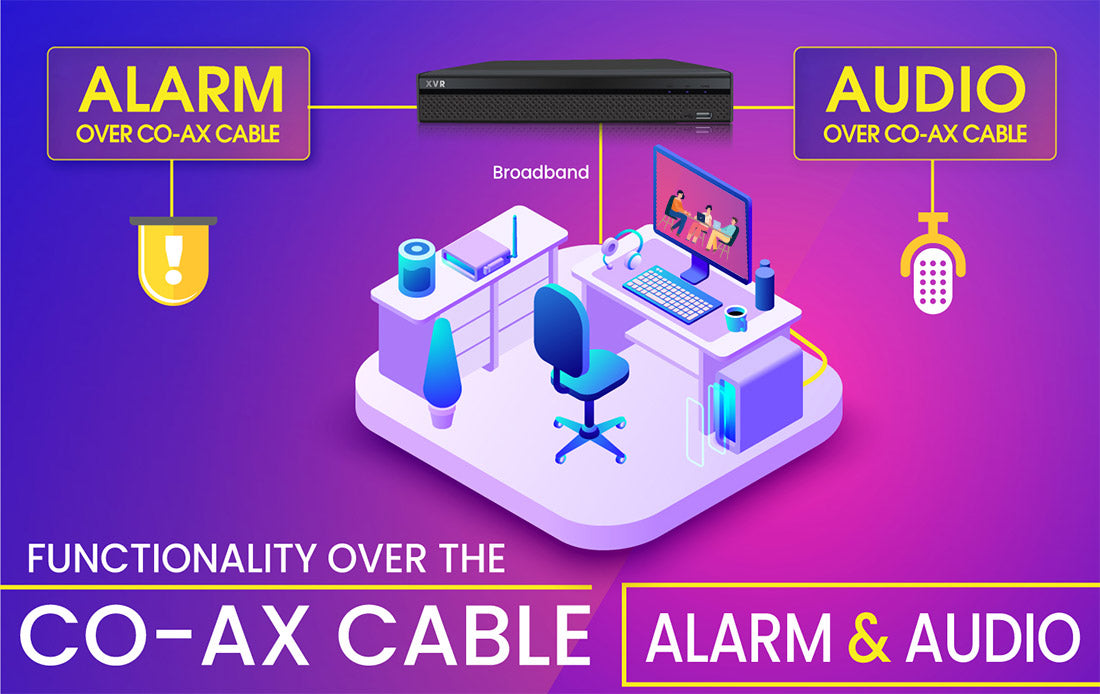

Functionality over Coax?

The latest trend in CCTV has seen not only an increase in picture quality over a standard BNC cable but also extra functions/signals being sent down the same cable too. On the SPRO range of cameras and recorders not only can you record HD images, or even 4k images, you can also capture audio or even alarm signals.

AUDIO OVER CO-AX CABLE

So how do you record audio?

Well first of all you need a camera with a built-in microphone and a recorder that is able to capture the audio. See the bottom of the page for HD Analogue cameras and recorders that support audio. The microphone on the camera will be on by default but the recorder won't record this straight away. Simply go into the settings on the recorder and then into encode and there should be a couple of tick boxes to enable audio recording. If you are using SPRO cameras and recorders you are able to record audio for each of the audio channels, i.e. one for each camera with a built-in mic. If you use a separate microphone (and cable) you will only be able to record up to the number of ports there are on the back of the recorder.

ALARM OVER CO-AX CABLE

How does the Alarm over Coax work?

The alarm over coax is used in conjunction with the PIR cameras that are now available. Rather than just sending you a noification that there has been movement you can also set this up to only record when motion has been detected on the camera. By default the recorder is set to record constantly, to change this all that needs to be done is change the DVR to record on a schedule. Enter the main menu and go to the storage settings, you will be able to change the settings here to only record on motion. And that's all there is to it.


Cameras that have a built-in microphone include the:

4k HD Analogue Cameras

DHD80/28RW/50M-M

DHD80/28RG/50M-M

DHQ80/36RW/80M-M

2mp & 4mp HD Analogue Cameras

DHD20/28RW-4-T-M

DHD20/28RG-4-T-M

DHD40/28RW-T-M

DHD40/28RG-T-M


Cameras with built-in PIR for alarm over coax:

DHQ20-28RW-PIR

DHQ40-28RW-PIR

The HD Analogue recorders that will support audio and alarm over coax are:

DHDVR06-B3 (4K on channel one only)

DHDVR24-B3

DHDVR12-B4

DHDVR24-B4
