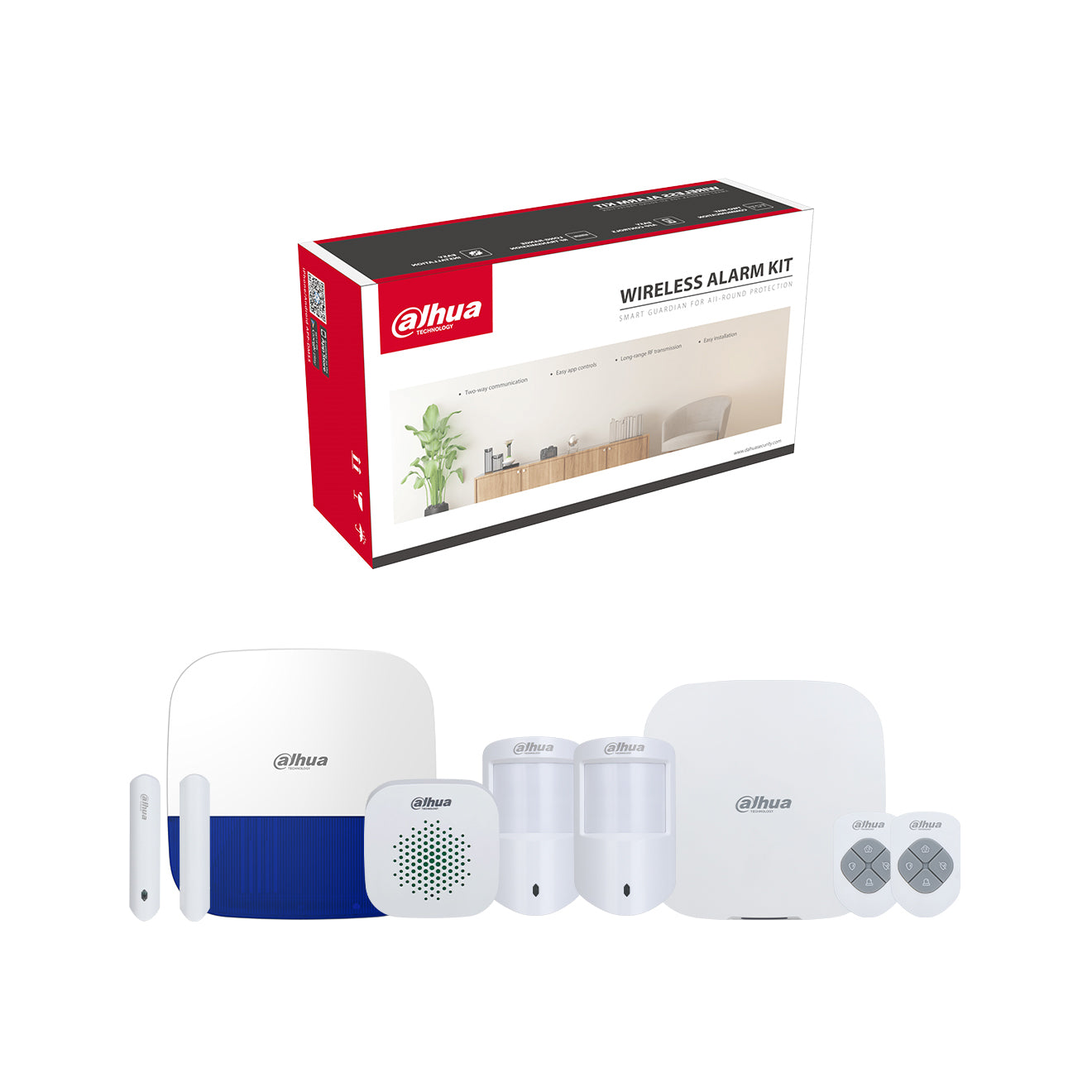

Dahua 4G ALARM KIT WITH KEYFOBS Includes:

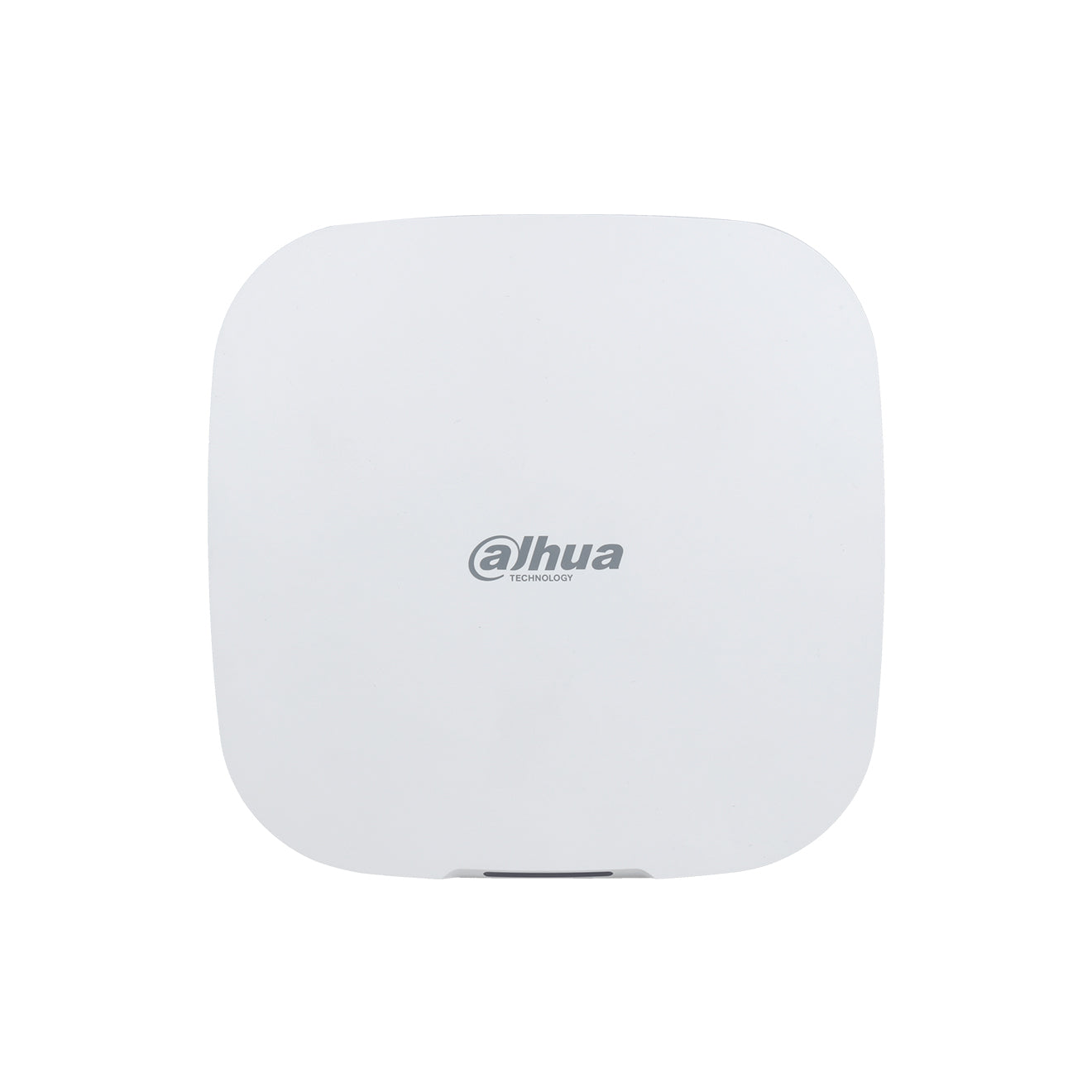

1x DAHUA 4G ALARM HUB 2.0
2x DAHUA WIRELESS PIR DETECTOR (DHI-ARD1233-W2(868)

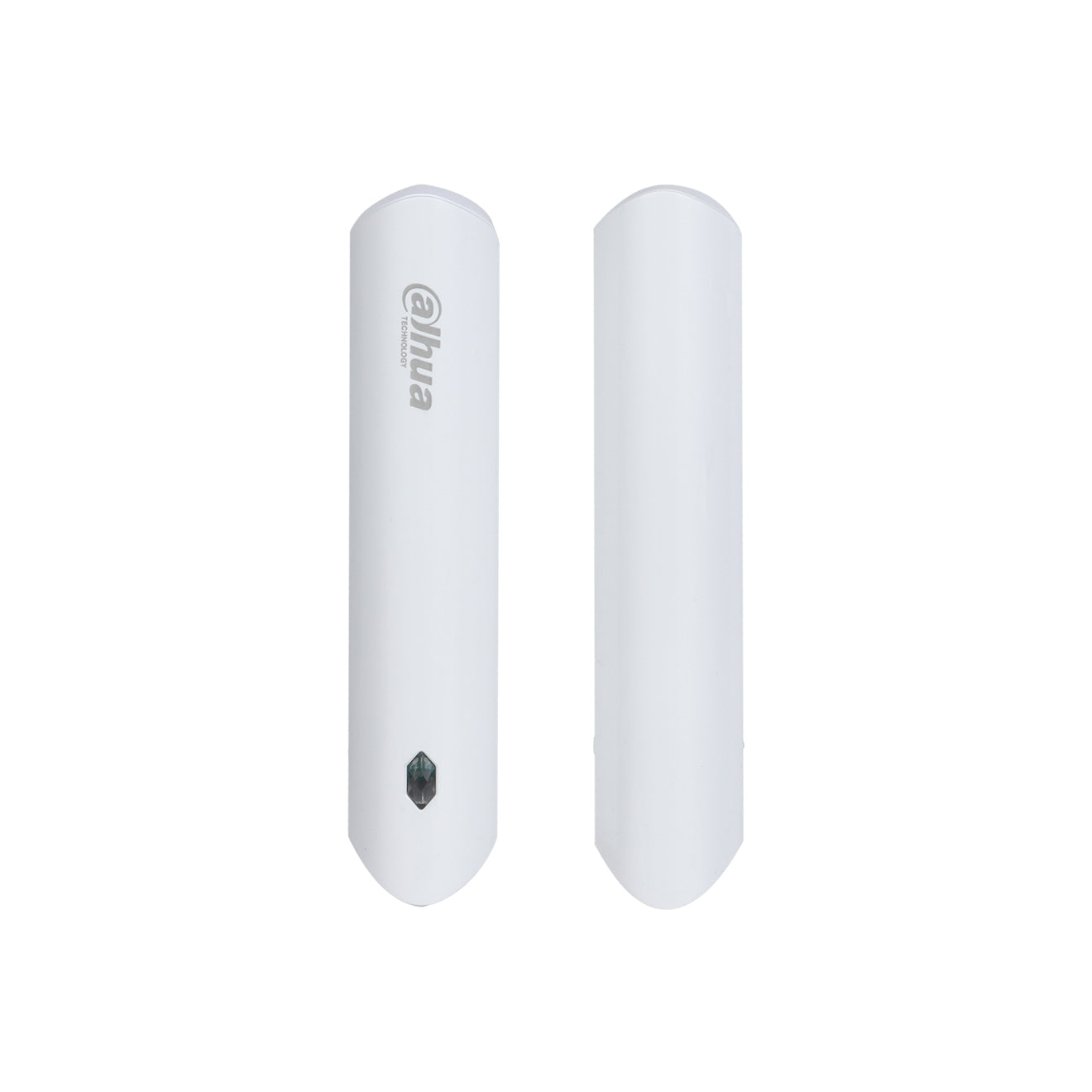

1x DAHUA WIRELESS DOOR DETECTOR (DHI-ARD323-W2(868))
1x DAHUA EXTERNAL SIREN, BLUE (DHI-ARA13-W2(868B))
1x DAHUA INTERNAL SIREN (DHI-ARA12-W2(868))
2x DAHUA ALARM KEYFOB (DHI-ARA24-W2(868))
• Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs).
• Peripherals status display (signal strength, battery level, temperature, program version).
• Wired, Wi-Fi or GPRS network connection.
• Dual SIM and Single Standby, auto switching.
• Automatic network replenishment (ANR).
• Video linkage on App.
• SOS emergency alarm.
• Frequency hopping function and two-way communication technology ensure communication stability.
• Cloud update and automatic recovery from update failure.
| Specifications: | |
|---|---|
| Model Number | DA-ARC3800H-FW2-868 |
| Wireless Zone | 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps Ethernet port. |
| Network Mode | Supports installation of dual SIM cards. Only one card can be enabled at a time. Also, multiple frequency bands are supported for the SIM cards (GSM: 900/1, 800 MHz, WCDMA: B1/B8, LTE-FDD: B1/B3/B7/B8/B20/B28A, LTETDD: B38/B40/B41). |
| Storage Battery | One built-in 4,750 mah rechargeable lithium battery. |
| Video & Audio | |
| Video Input | 8-ch IPC, which only supports the upload of alarm videos. |
| Audio Output | 1 channel |
| Volume Control | Yes |
| Voice Bradcast | Telephone and local speaker |
| Function | |
| Indicator Light | The indicator indicates the status of alarms, arming and disarming, the network connection and device failure. |
| Button | Includes a reset button, voltage button and AP switch button. |
| SMS | Yes (up to 5 phone numbers) |
| Phone Call | Yes (up to 5 phone numbers) |
| Video Linkage | Yes |
| Offline Cache | Stores up to 50 alarm messages. |
| Arm and Disarm | App, keyboard, remote control, card, scheduled arming and disarming. |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| User Management | Functions can be shared by the app users. These include 1 installer, 1 administrator and 31 general users. |
| Logs | Up to 5, 000 entries |
| Transmission Protocol | SIA, SoftGuard |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| Wifi | 2.4G |
| General | |
| Language | Up to 7 languages are supported for SMS: English, Spanish (Latin America), French, Italian, Arabic, Turkish, and Danish. It is set as English by default. The alarm voice message feature and local speaker only support English. |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Standby Time | The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud. |
| Power Consumption | ≤12 W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH). |
| Product Dimensions | 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H) |
| Installation | Supports wall mount and desktop mount installation. |
| Net Weight | 510 g (1.12 lb) |
| Gross Weight | 860 g (1.90 lb) |
| Certifications | CE |
| Battery Life | Storage battery standby for 12 hours |
| Casing | PC + ABS |
| Anti-corrosion Level | Basic Protection Storage Temperature |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions | 254 mm × 211 mm × 61 mm (10.00” × 8.31” × 2.40”) (L × W × H), standalone in the inner box 524 mm × 508 mm × 442 mm (20.63” × 20.00” × 17.40“) (L × W × H), protective case |

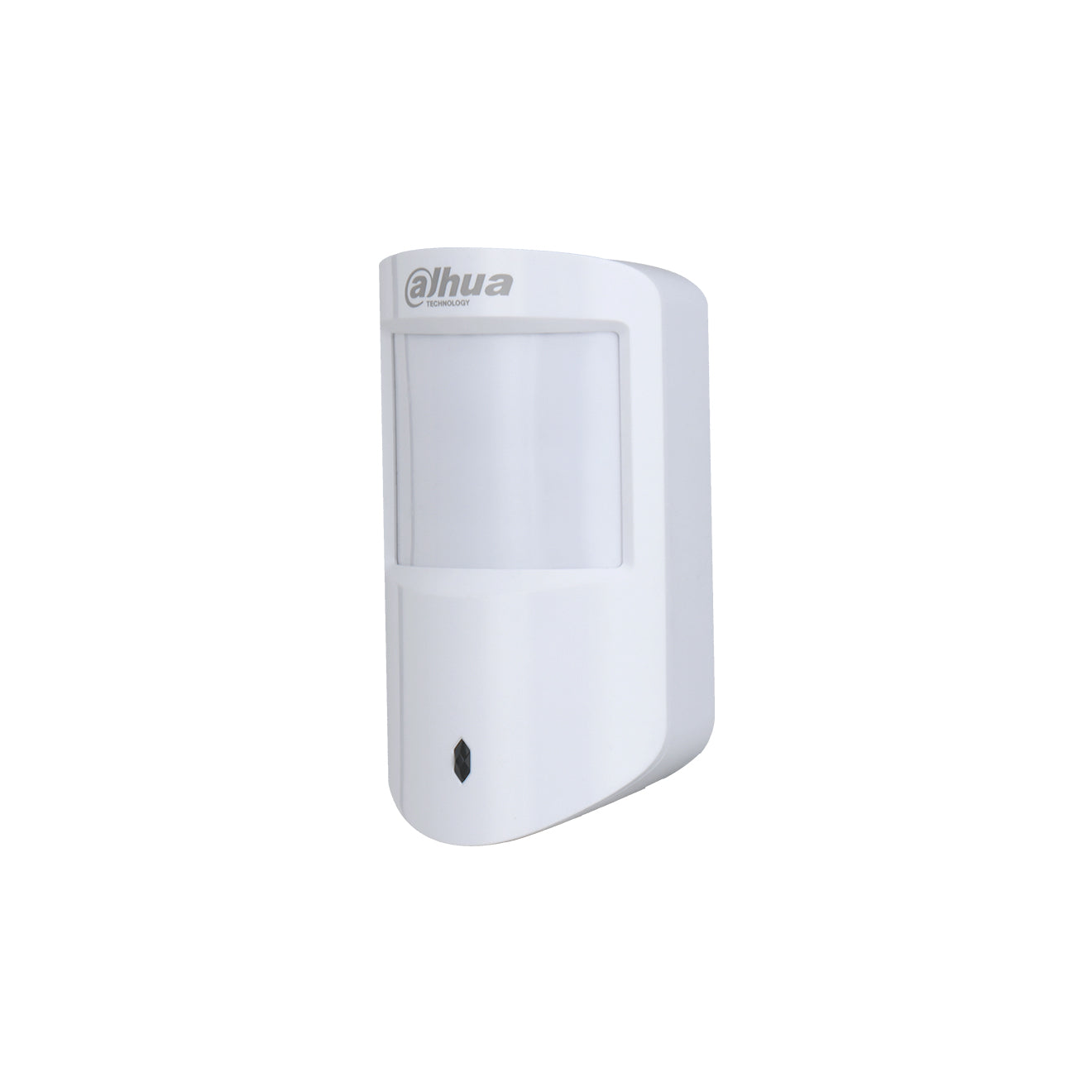

PIR Detector:
| Specifications: | |
|---|---|
| Model Number | DA-ARD1233-W2-868 |
| Port | |
| Indicator Light | 1 x green alarm indicator |
| Button | 1 x power button |
| Function | |
| Tamper Alarm | Yes |
| Remote Upgrade | Cloud Update |
| Test Mode | Yes |
| Low Battery Alarm | Yes |
| Search | Signal Strength Detection |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General | |
| Power Supply | CR123A battery |
| Power Consumption | Max. 120 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH). |
| Product Dimensions | 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H) |
| Installation | Wall mount |
| Net Weight | 100 g (0.22 lb) |
| Gross Weight | 170 g (0.37 lb) |
| Certifications | CE |
| Battery Life | 4 years |
| Casing | PC + ABS |
| Temperature | |
| Measuring Range | –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
| Measuring Precision | ± 1 °C (± 33.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Specification | |
| Detection | PIR |
| Sensor | Dual-element low-noise PIR sensor |
| Detection Range | 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft) |
| Detection Speed | 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Pet Immunity Level | ≤ 18 kg (39.68 lb) |
| White Light Resistance Level | 2000 lx |
| Two-way Digital Temperature Compensation | Yes, no attenuation of detection in high temperature |
| Sensitivity | 3 Levels Adjustable |

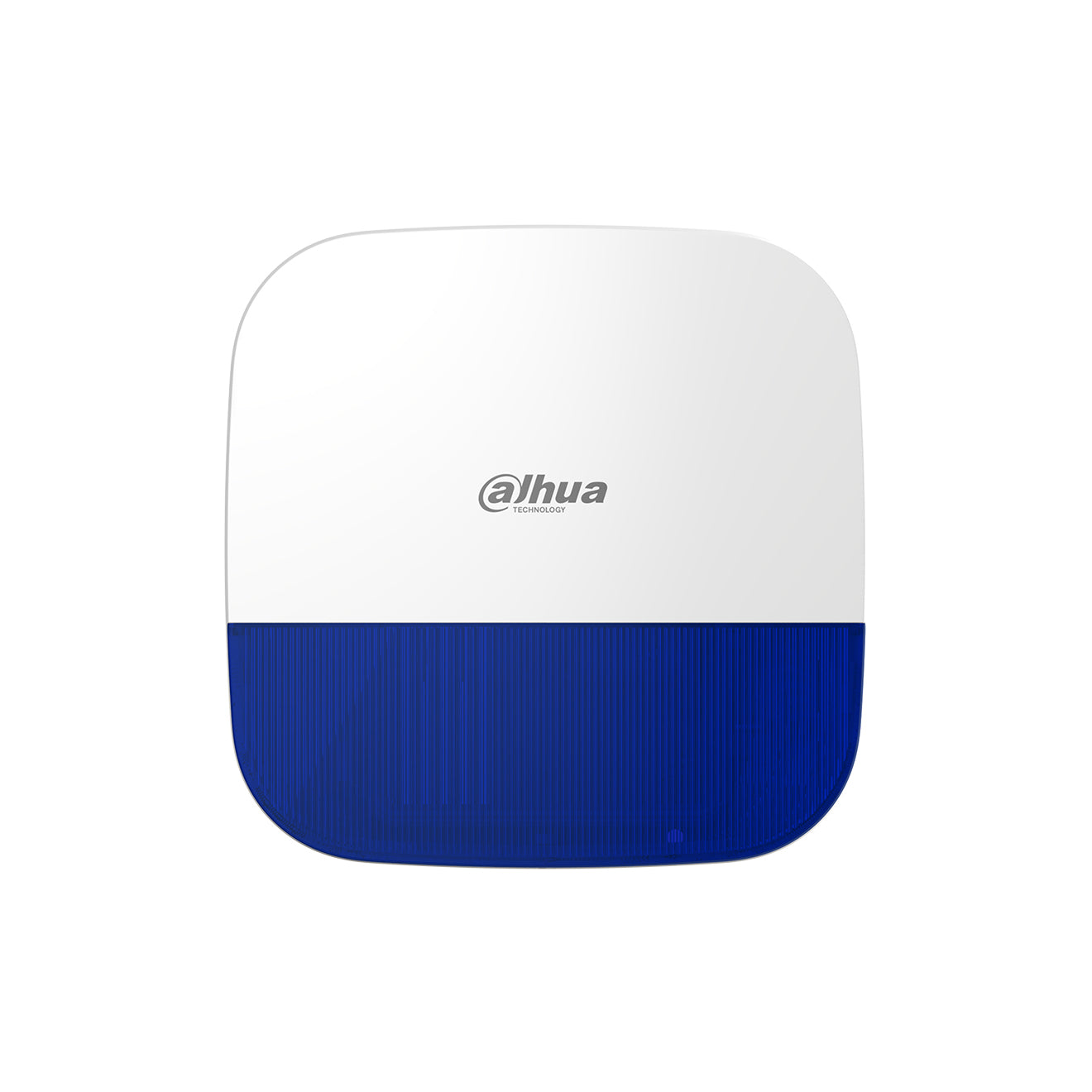

External Siren (Blue):
| Specifications: | |
|---|---|
| Model Number | DA-ARA13-W2-868B |
| Function | |
| Indicator Light |
1 x green alarm indicator 12 x alarm LED groups |
| Button | 1 x power switch |
| Buzzer | 1 x buzzer |
| Remote Update | Cloud Update |
| Low Battery Detection | Yes |
| Battery Level Display | Yes |
| Tamper | Yes |
| Signal Strength | 7 |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General | |
| Power Supply Mode | Battery (default), 12 VDC |
| Battery Model | CR123A |
| Battery Life | 4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%) |
| Operating Temperature | –25 °C to +60 °C (–13 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH). |
| Product Dimensions | 200 mm × 200 mm × 52.5 mm (7.87" × 7.87" × 2.07") (L × W × H) |
| Packaging Dimensions | 255 mm × 239 mm × 64 mm (10.04" × 9.41" × 2.52") (L × W × H) |
| Installation | Wall Mount |
| Net Weight | 610 g (1.34 lb) |
| Gross Weight | 920 g (2.03 lb) |
| Certifications | CE |
| Protection | IP65 |
| Casing | PC + ABS |
| Technical | |
| Scenario | Outdoor |
| Operating Current | 92 μA |
| Alarm Current | 420 mA |
| Sound and Light Alarm | Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic and more. |
| Sound Pressure | 110 dB |

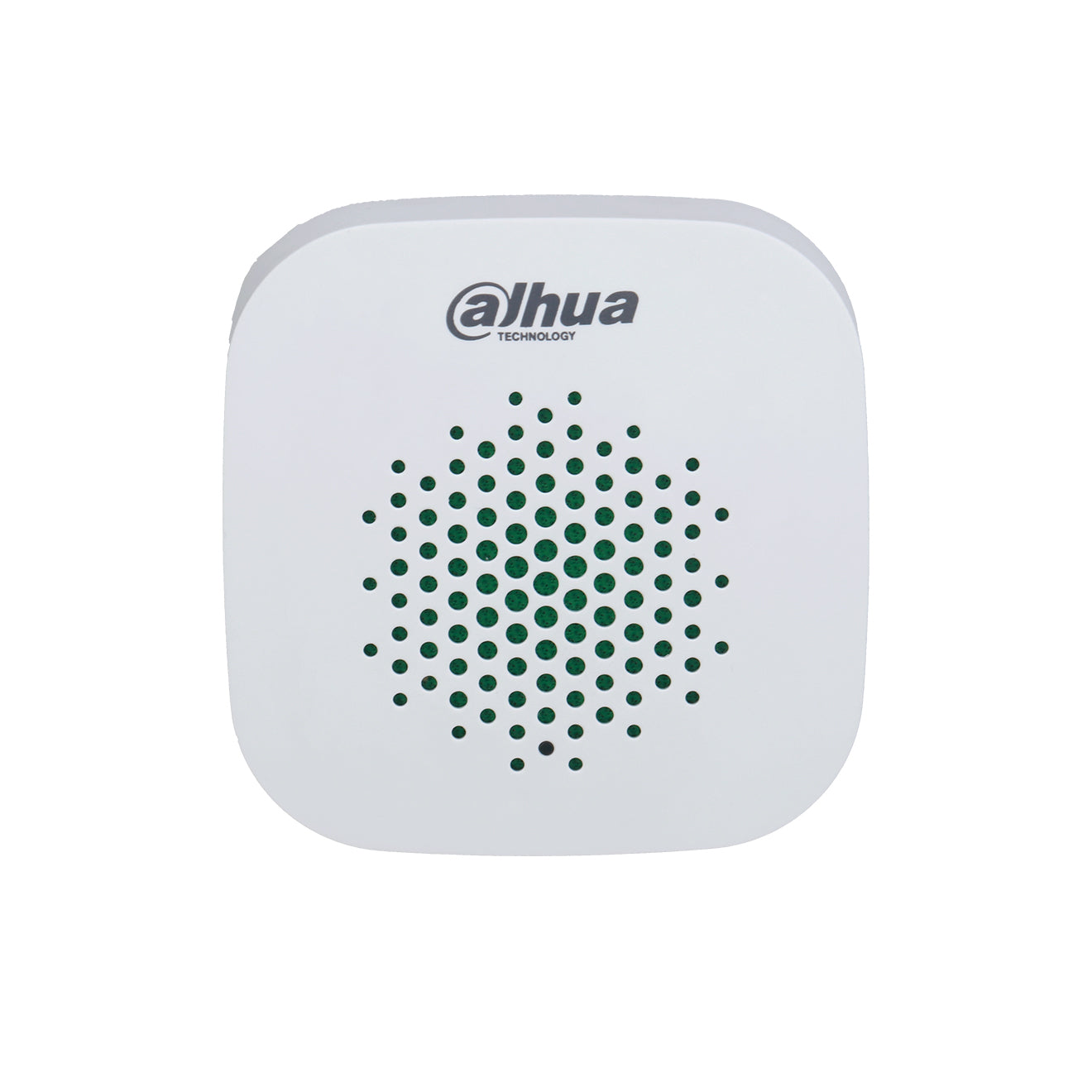

Internal Siren:
| Specifications: | |
|---|---|
| Model Number | DA-ARA12-W2-868 |
| Port | |
| Indicator Light | 1 x green alarm indicator |
| Button | 1 x power button |
| Function | |
| Tamper Alarm | Yes |
| Remote Upgrade | Cloud Update |
| Test Mode | Yes |
| Low Battery Alarm | Yes |
| Search | Signal Strength Detection |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,000 m (3,280.84 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General | |
| Power Supply | 2 × CR123A batteries |
| Power Consumption | Max. 240 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH). |
| Product Dimensions | 81.0 mm × 81.0 mm × 26.0 mm (3.19" × 3.19" × 1.02") (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H) |
| Installation | Bracket mount |
| Net Weight | 105 g (0.23 lb) |
| Gross Weight | 175 g (0.39 lb) |
| Certifications | CE |
| Battery Life | 2.5 years in working status (triggered twice every week and alerts 120 s for each triggering) |
| Sound Pressure | ≥ 105 ± 3 dB\1M |
| Casing | PC + ABS |
| Temperature | |
| Measuring Range | –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
| Measuring Precision | ± 1 °C (± 33.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Audio/Video Parameter | |
| Volume Adjustment | 3 volume levels |

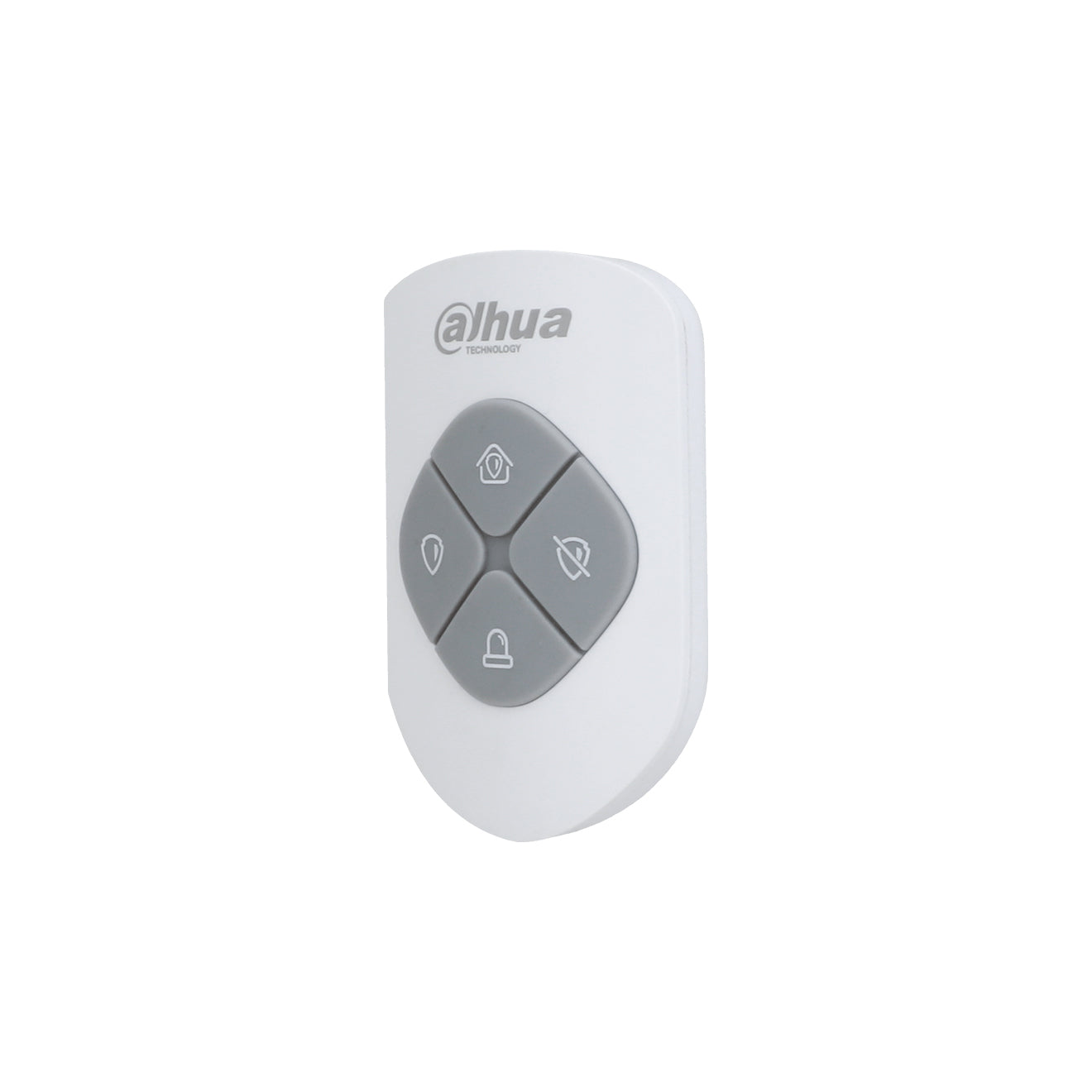

Keyfobs:
| Specifications: | |
|---|---|
| Model Number | DA-ARA24-W2-868 |
| Port | |
| Indicator Light | 1 x two-colur status indicator (green: normal, red: abnormal |
| Button | 4 (Home, Away, Disarm and SOS) |
| Function | |
| Remote Upgrade | Cloud Update |
| Low Battery Alarm | Yes |
| Search | Signal Strength Detection |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 900 m (2,952.76 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General | |
| Power Supply | CR2032 battery |
| Power Consumption | Max. 100 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH). |
| Product Dimensions | 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8 mm (5.31" × 3.88" × 1.09") (L × W × H) |
| Net Weight | 20 g (0.04 lb) |
| Gross Weight | 65g (0.14 lb) |
| Certifications | CE |
| Battery Life | 3 years |
| Casing | PC + ABS |
