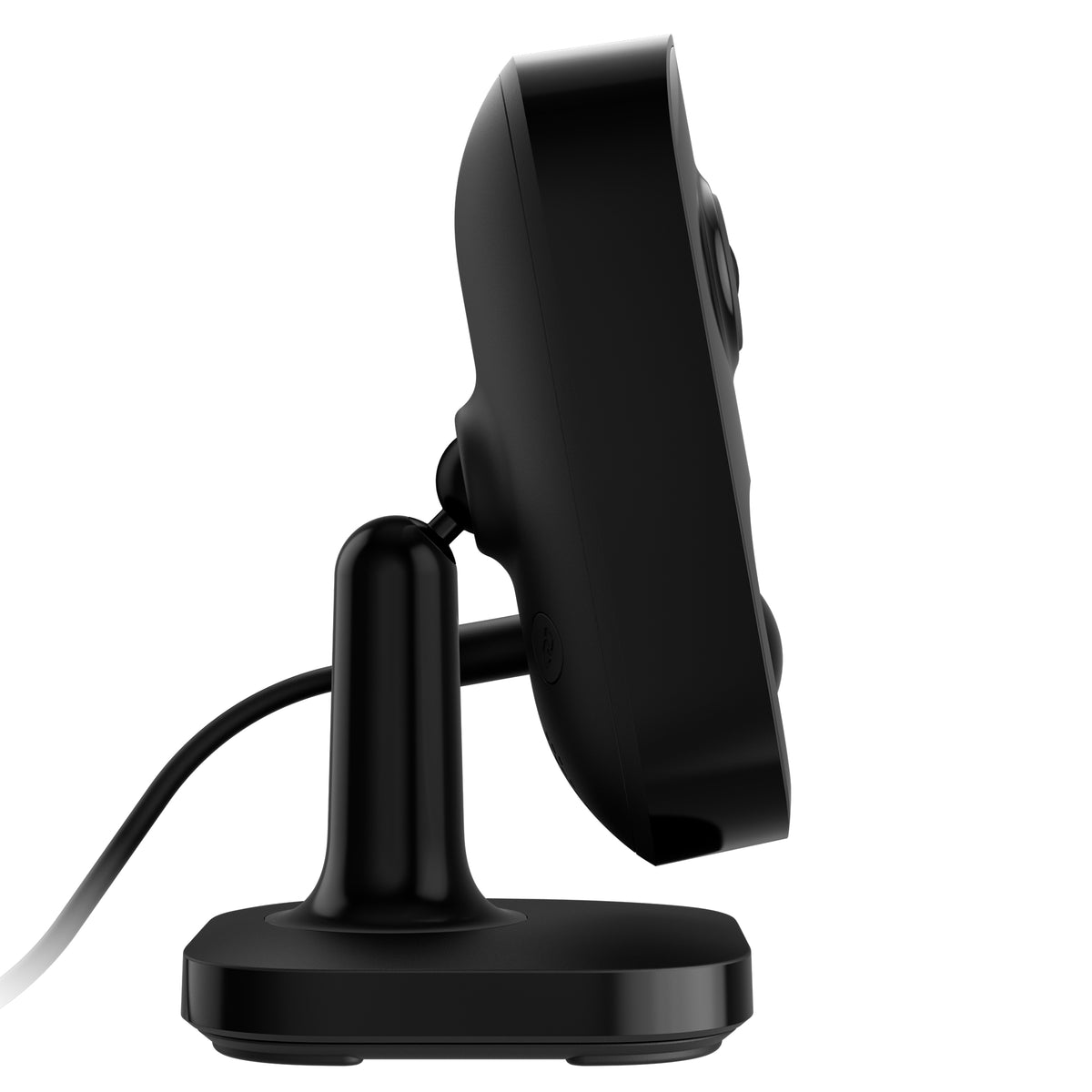

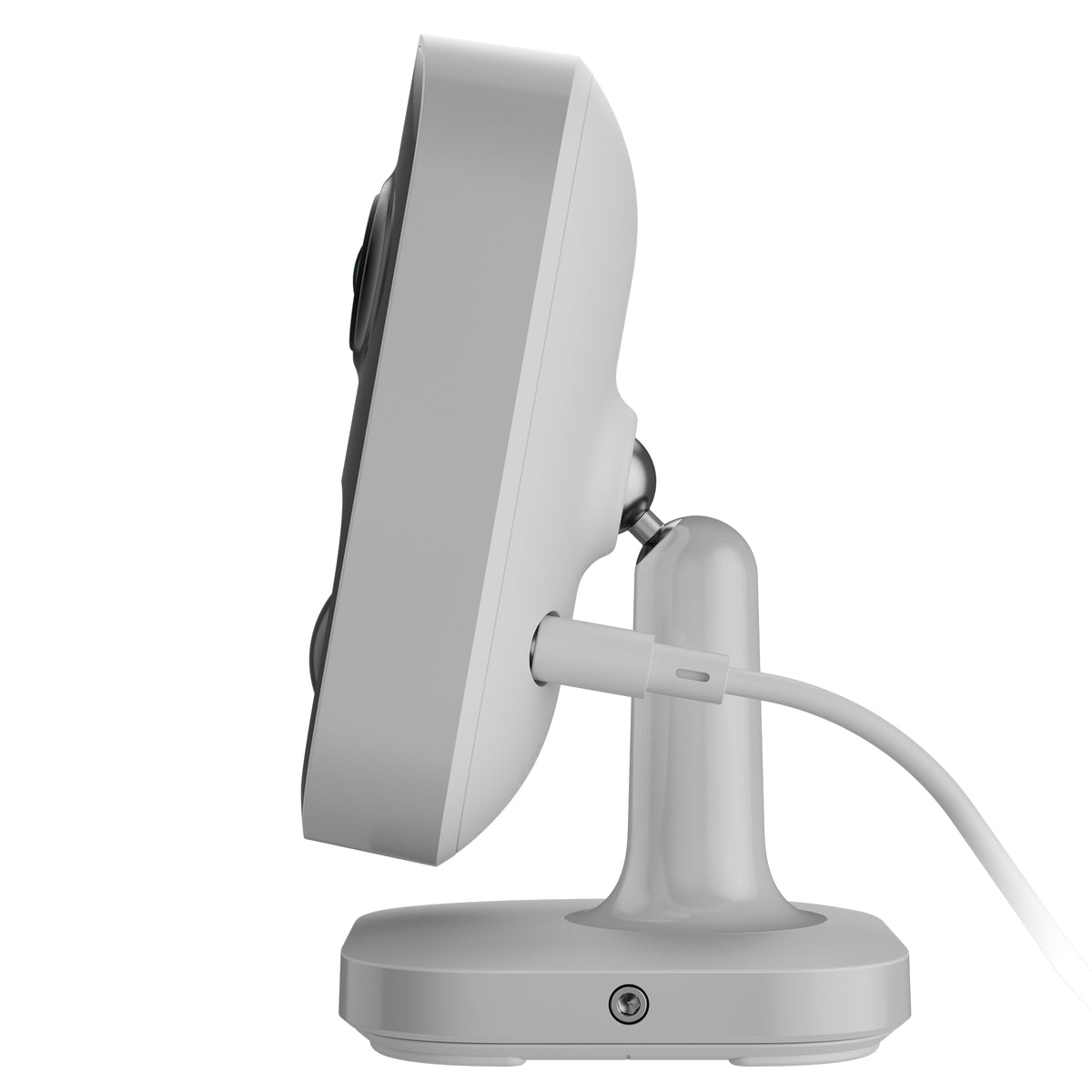

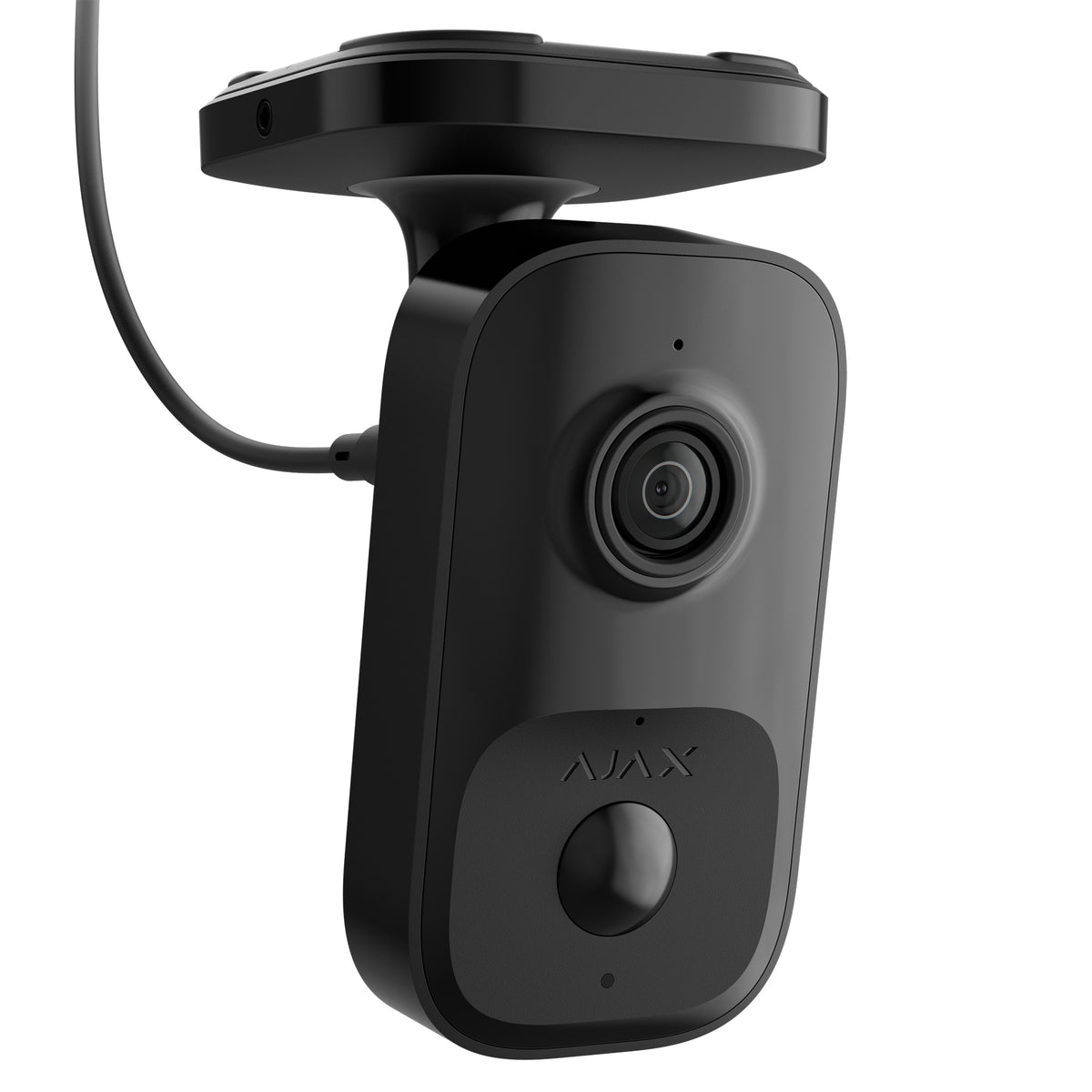

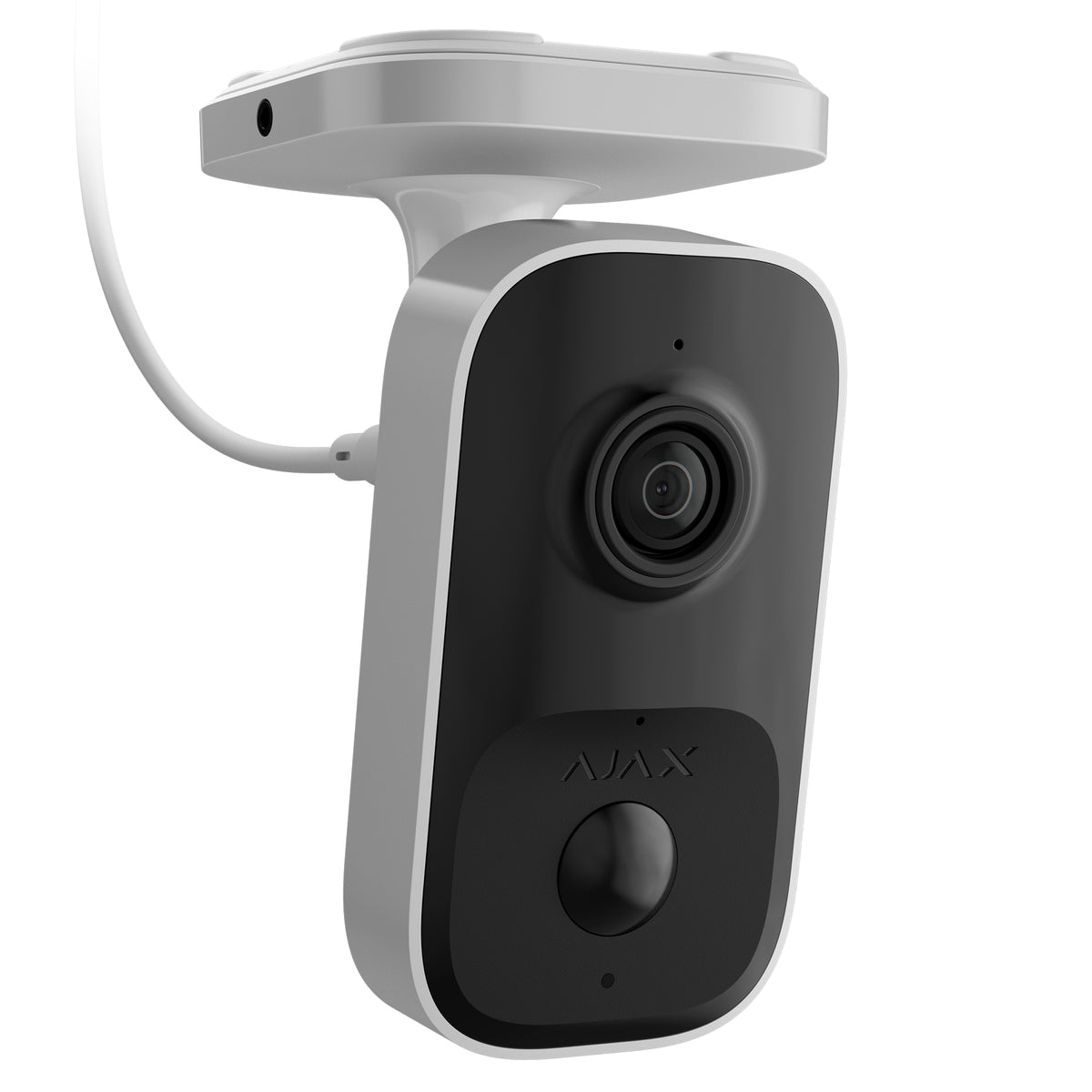

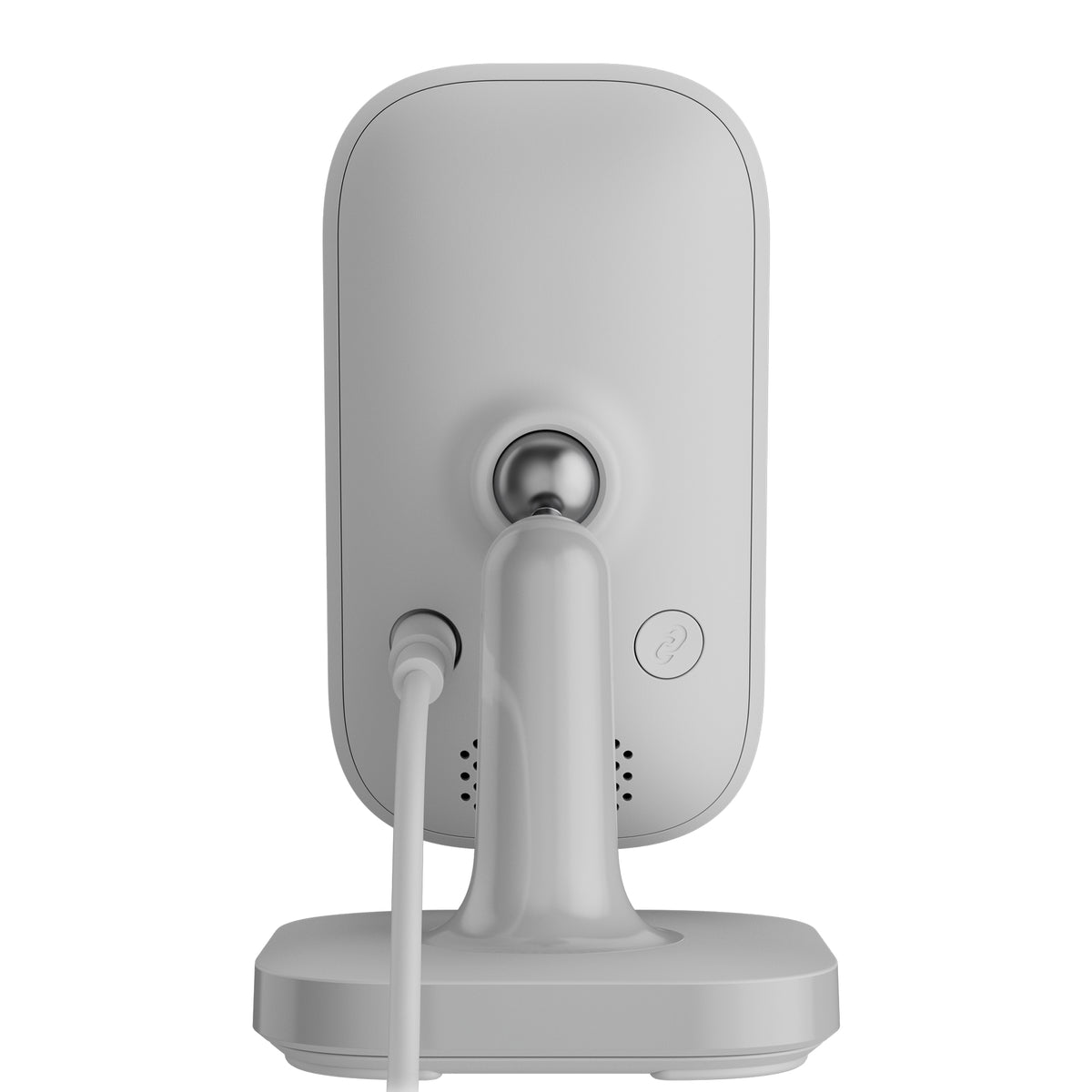

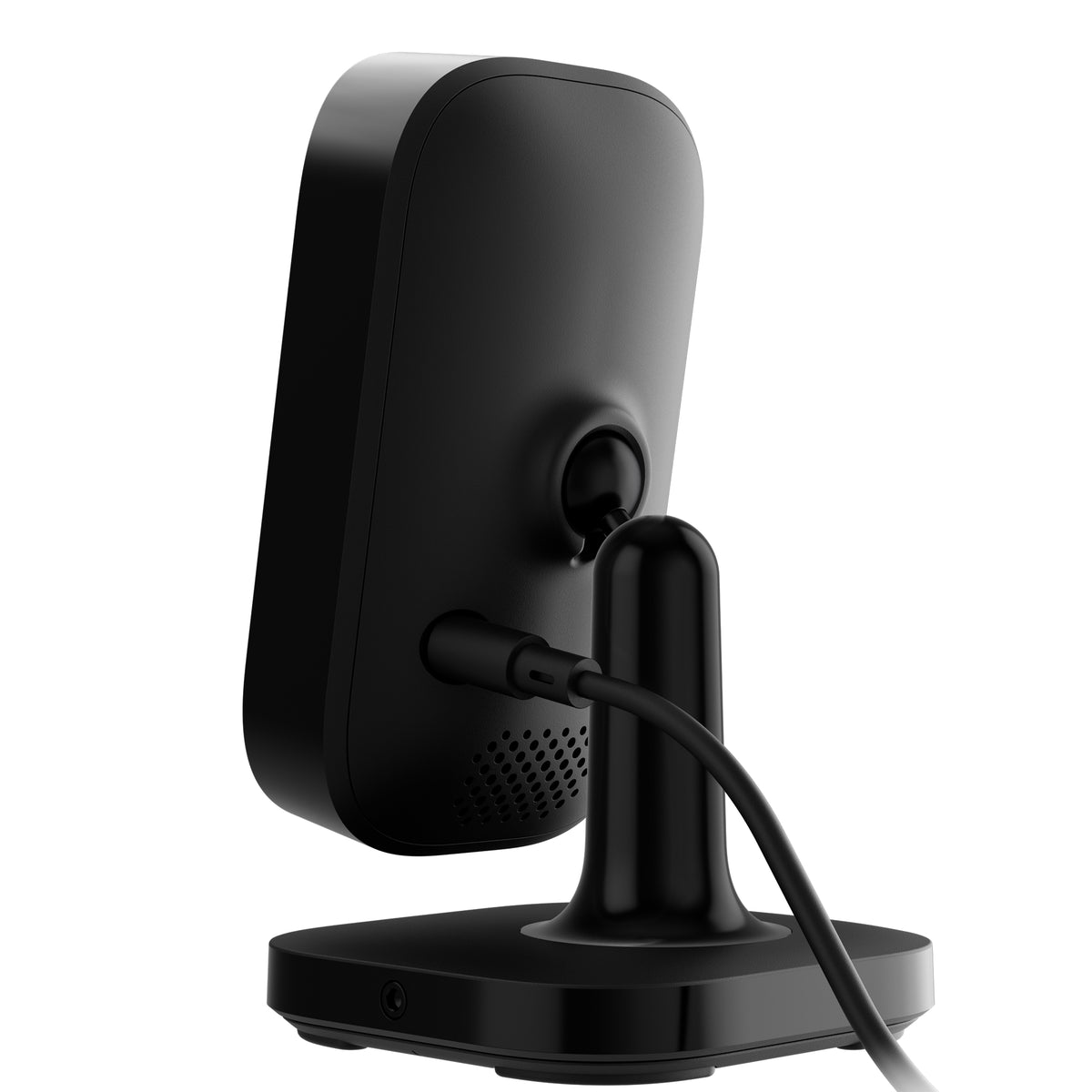

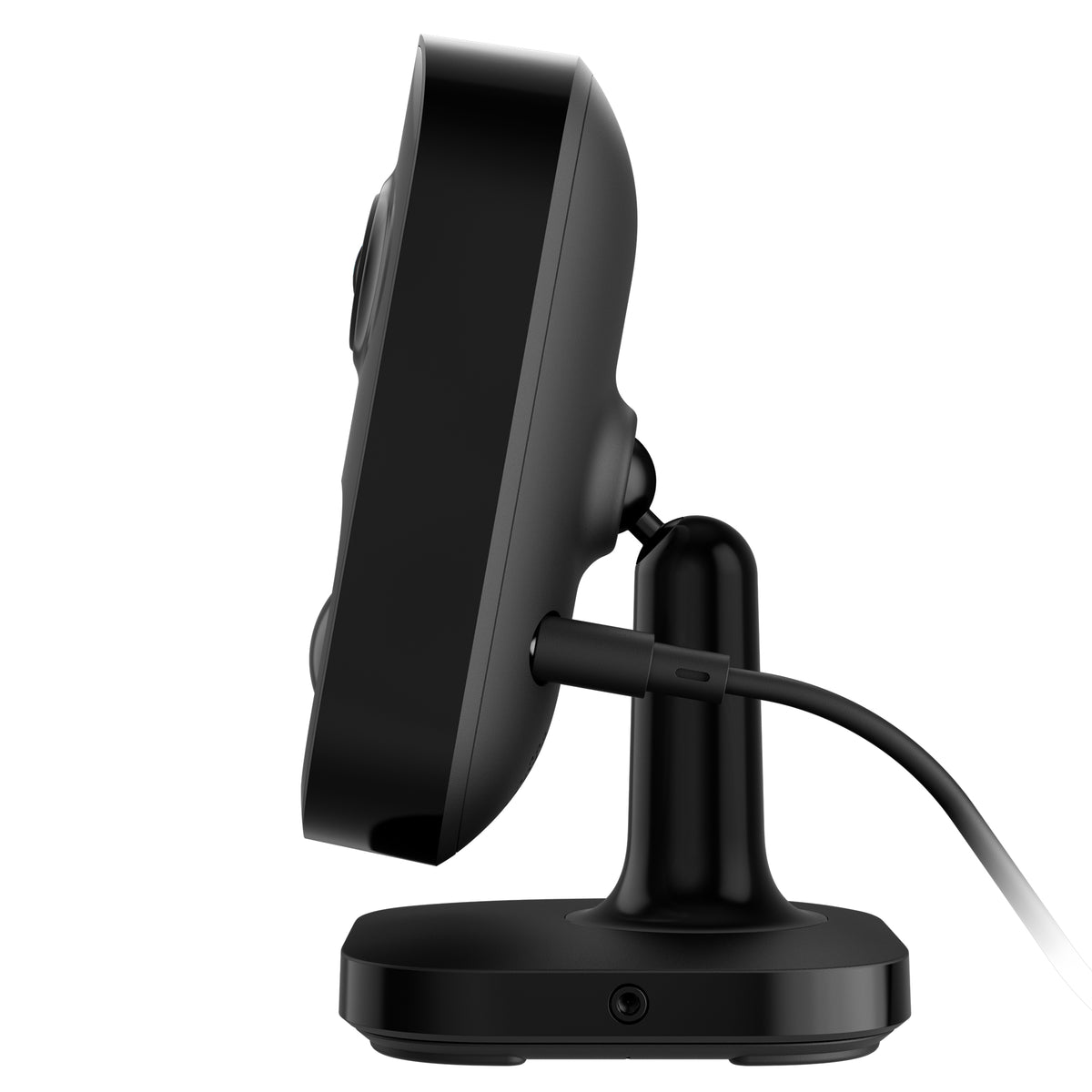

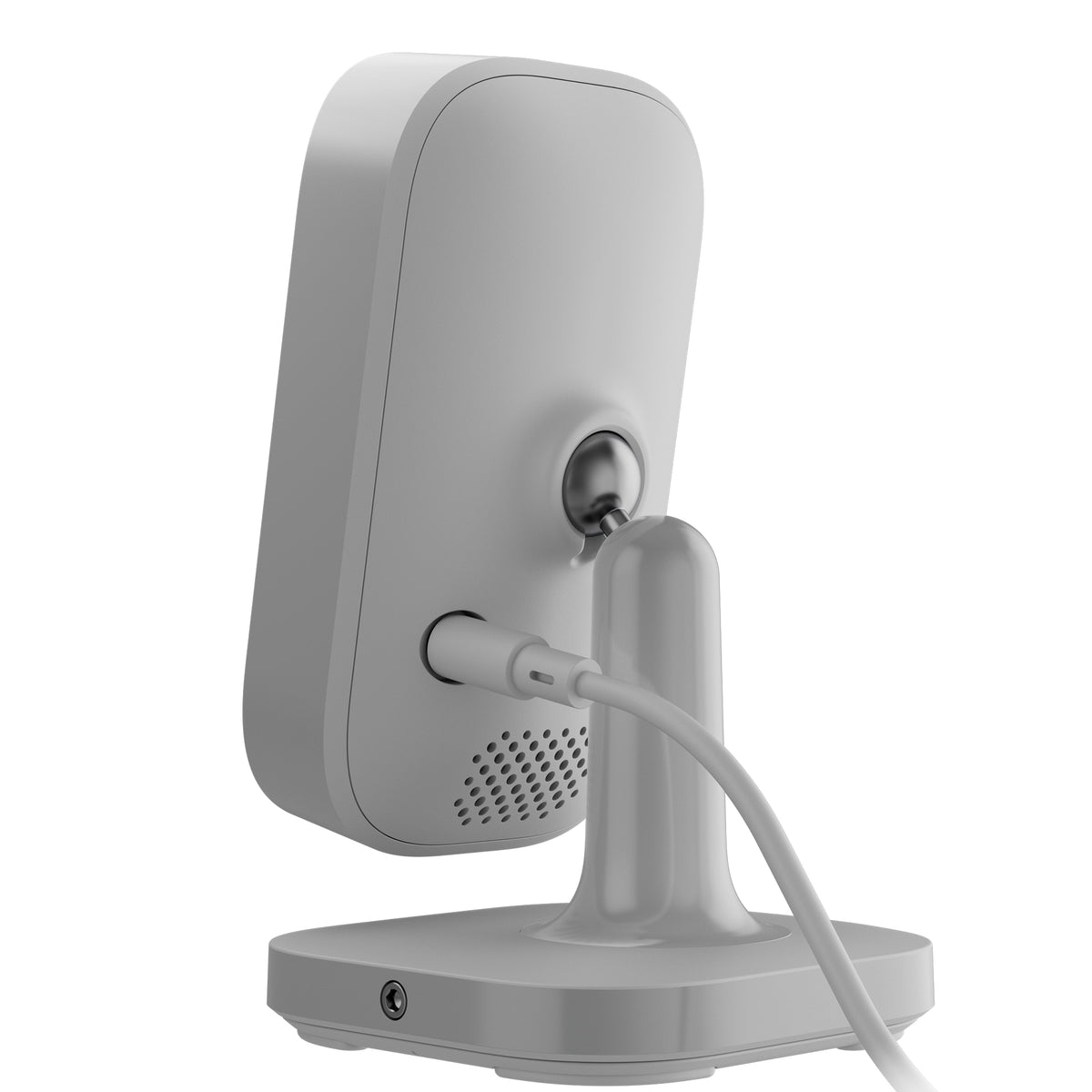

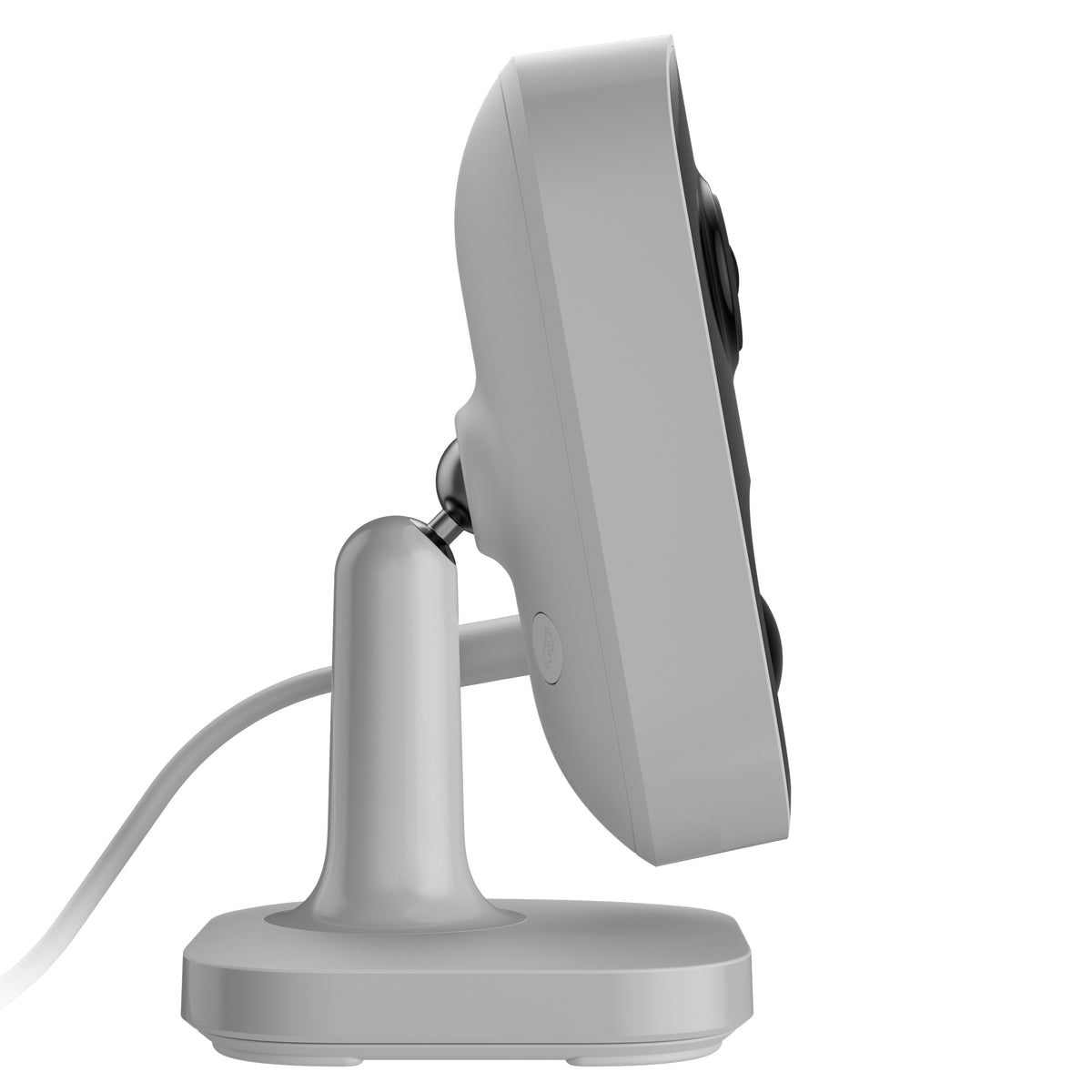

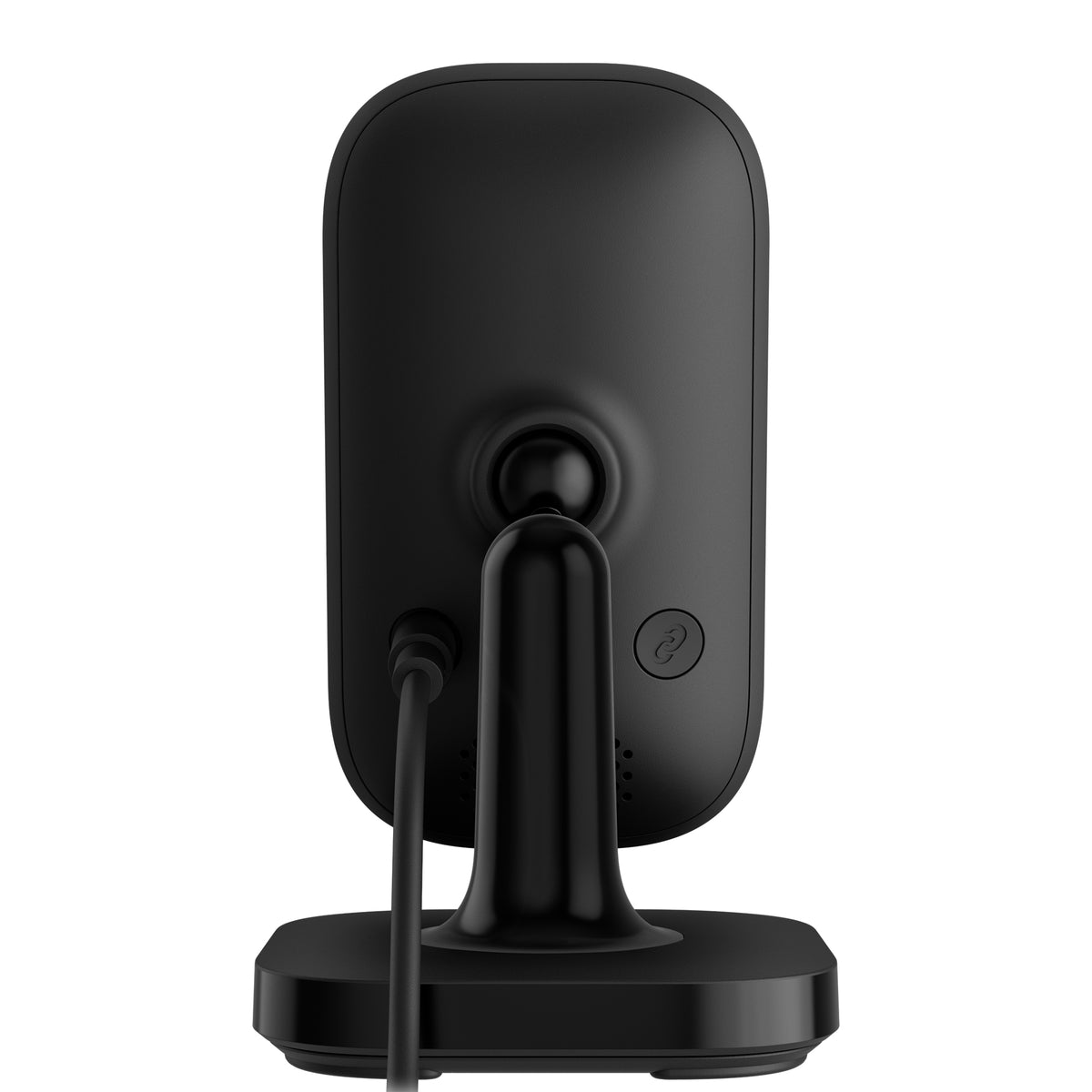

Ajax IndoorCam
Wi-Fi AI-powered indoor security camera with motion detection, two-way audio, and encrypted video streaming. Designed for indoor monitoring and integration with Ajax security systems.
Camera
Image sensor: 4 MP CMOS
Maximum resolution: up to 2688 × 1520 px
Field of view:
-
Horizontal: 110°
-
Vertical: 60°
Night illumination:
-
Smart IR illumination up to 8 m
-
Automatic brightness adjustment to avoid overexposure
Video
Video protocol: JetSparrow (encrypted peer-to-peer streaming)
Video codec: H.264
Dynamic range: HDR for improved visibility in bright and dark areas
Storage
-
Ajax Cloud (coming soon)
-
Ajax NVR support
Audio
Microphone: built-in for audio recording
Speaker: built-in for two-way communication
Audio codec: G.722
Audio processing: noise suppression and echo cancellation
Intelligent detection
-
Motion detection (PIR sensor + software analysis)
-
AI object detection:
-
People
-
Pets
-
Vehicles
-
Motion sensor
Sensor: 1 × PIR
Detection distance: up to 4 m
Detection angle:
-
Horizontal: 110°
-
Vertical: 60°
Sensitivity: 3 adjustable levels
Connectivity
Wi-Fi: 802.11 b/g/n
Frequency: 2.4 GHz
Video bitrate: up to 2 Mbit/s
Backup communication:
-
Jeweller
-
Wings
These proprietary Ajax wireless technologies transmit alarms, commands, events, and photo verifications when connected to a hub.
Key features
-
Two-way voice communication
-
Visual verification of Ajax alarms
-
LED status indicator
Protection
-
Holding screw for secure mounting
-
Encrypted mTLS connection
-
Ajax Cloud authentication
-
Secure Boot
-
Verified OTA firmware updates
Installation
-
Designed for indoor use only
-
Avoid installation in direct sunlight to prevent overheating
Power supply
Power input: 12 V DC ±20%, 1 A
Power consumption: TBC
Enclosure
Dimensions: 128 × 74 × 76 mm
Weight: 235 g
Operating temperature: 0 °C to +40 °C
Humidity: up to 90% (non-condensing)
Protection class: IP20
