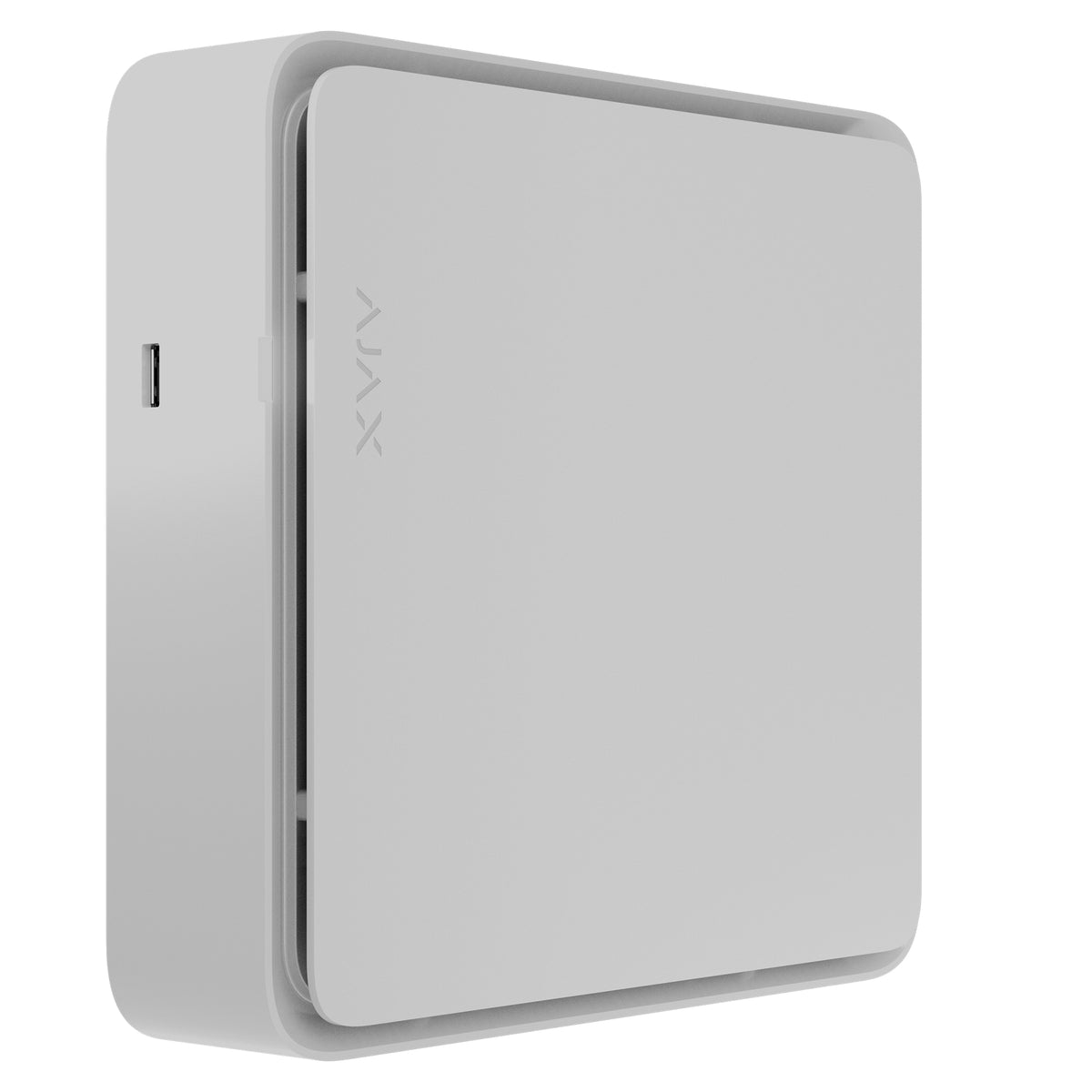

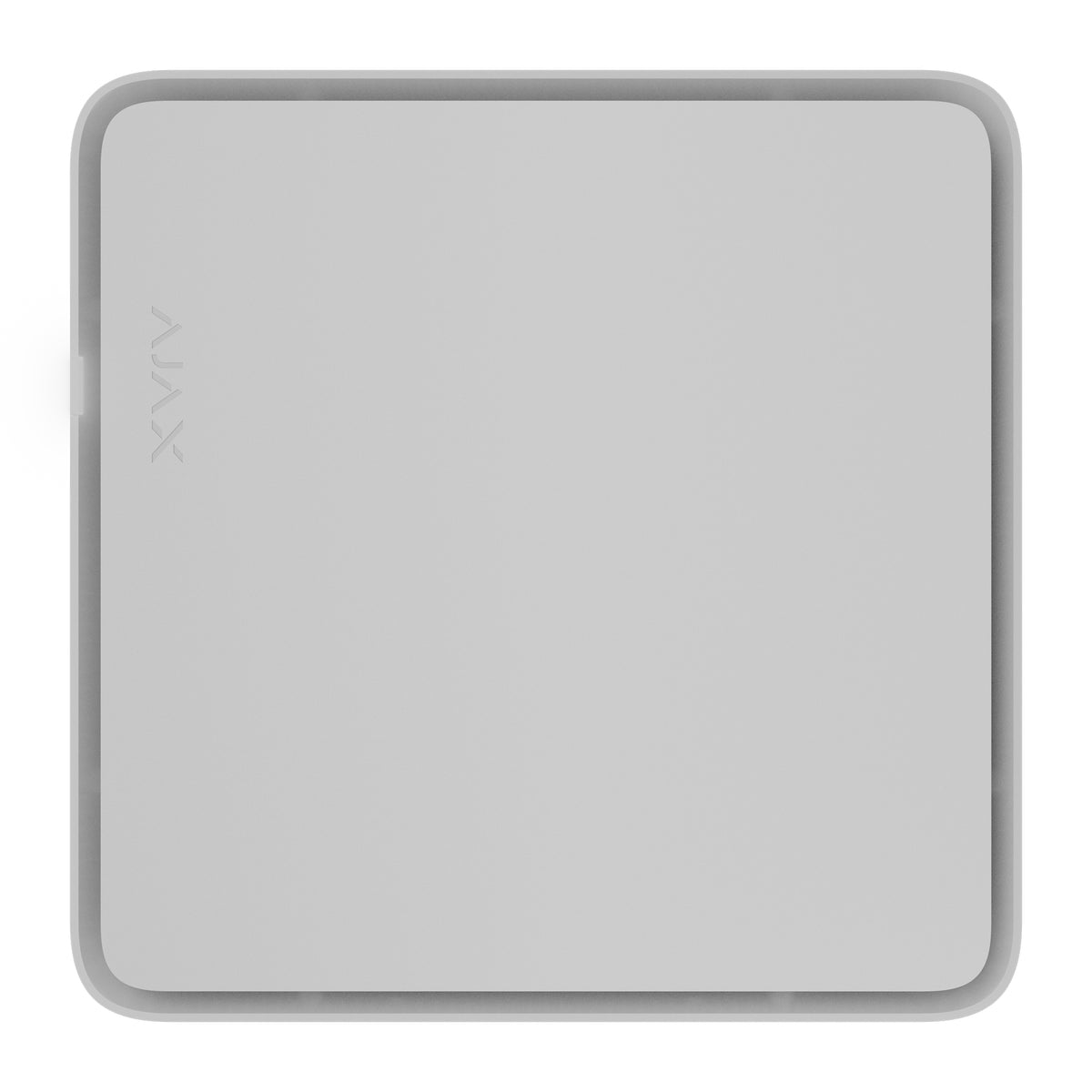

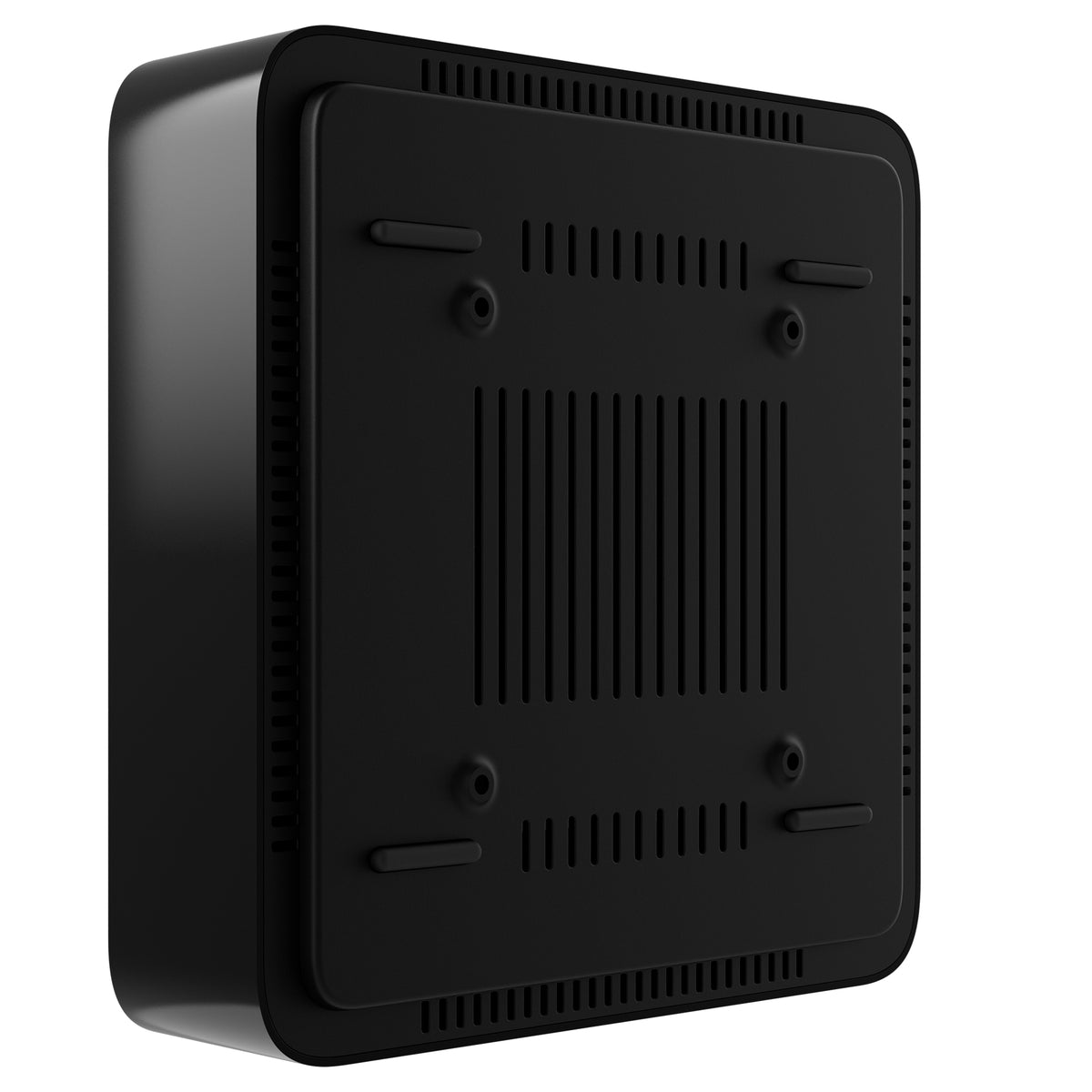

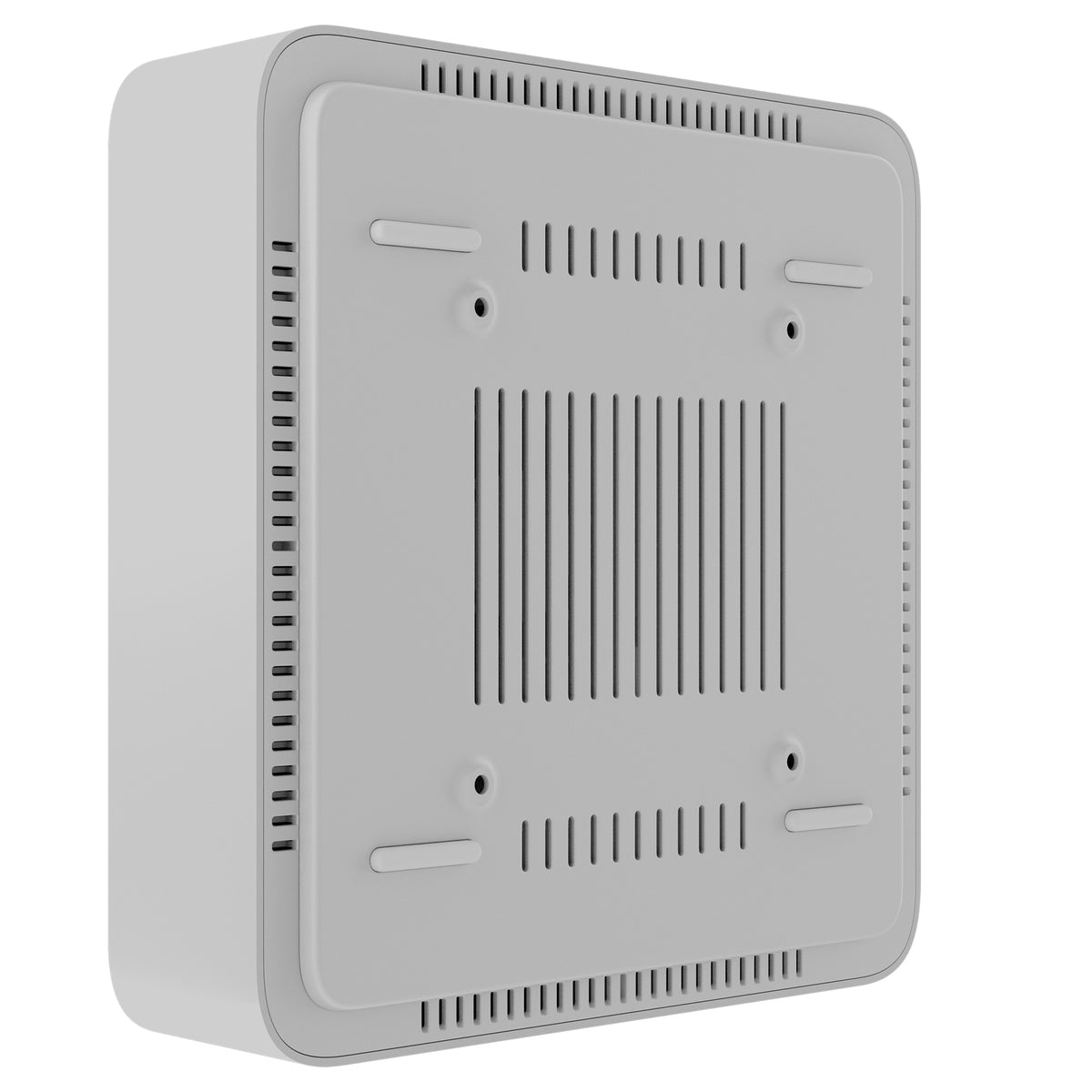

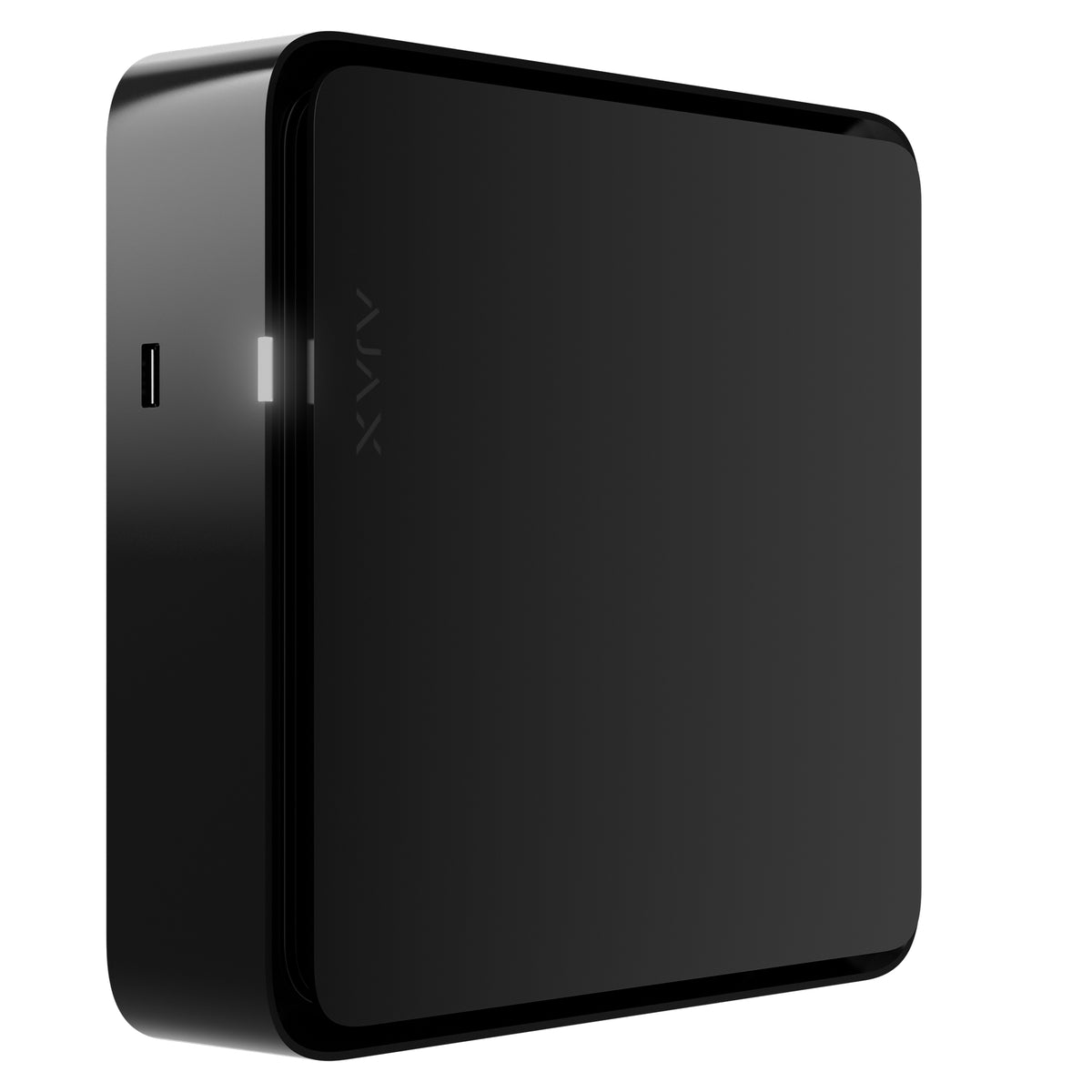

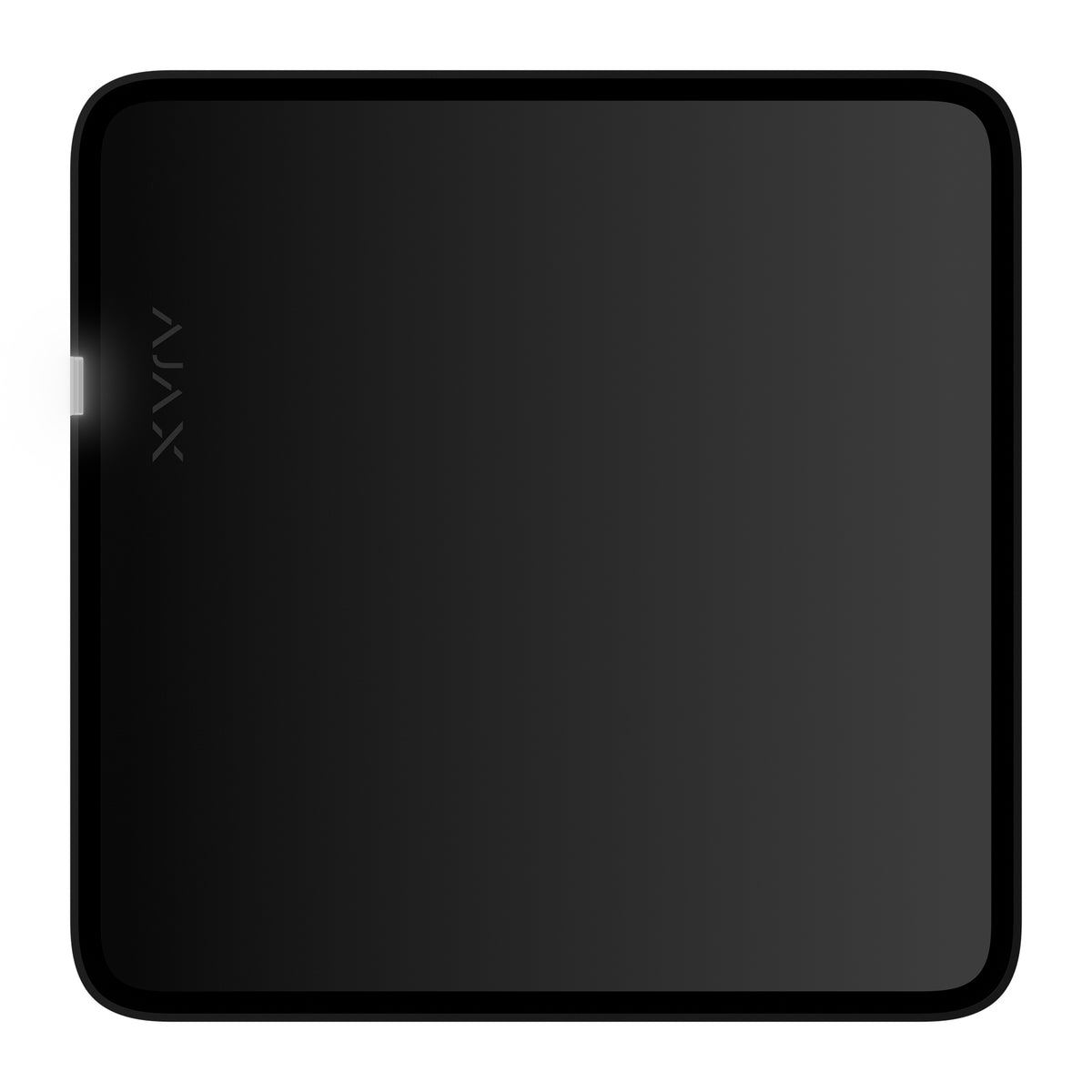

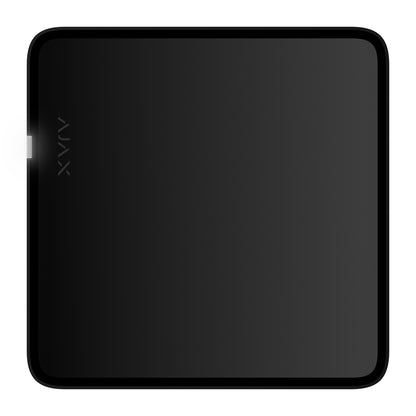

Ajax Systems HAC IP NVR Recorder
Coming soon to CCTV Outlet! Come back soon to get your hands on all your favourite products.
All our products come with exceptional customer care.If you encounter any technical challenges, you have direct access to our in-house team of highly experienced specialists. When you get in touch, our customer service team will coordinate with our technical department to find a swift solution for you. Our technical services cover everything from simple configuration questions and password resets to complex fault diagnosis.

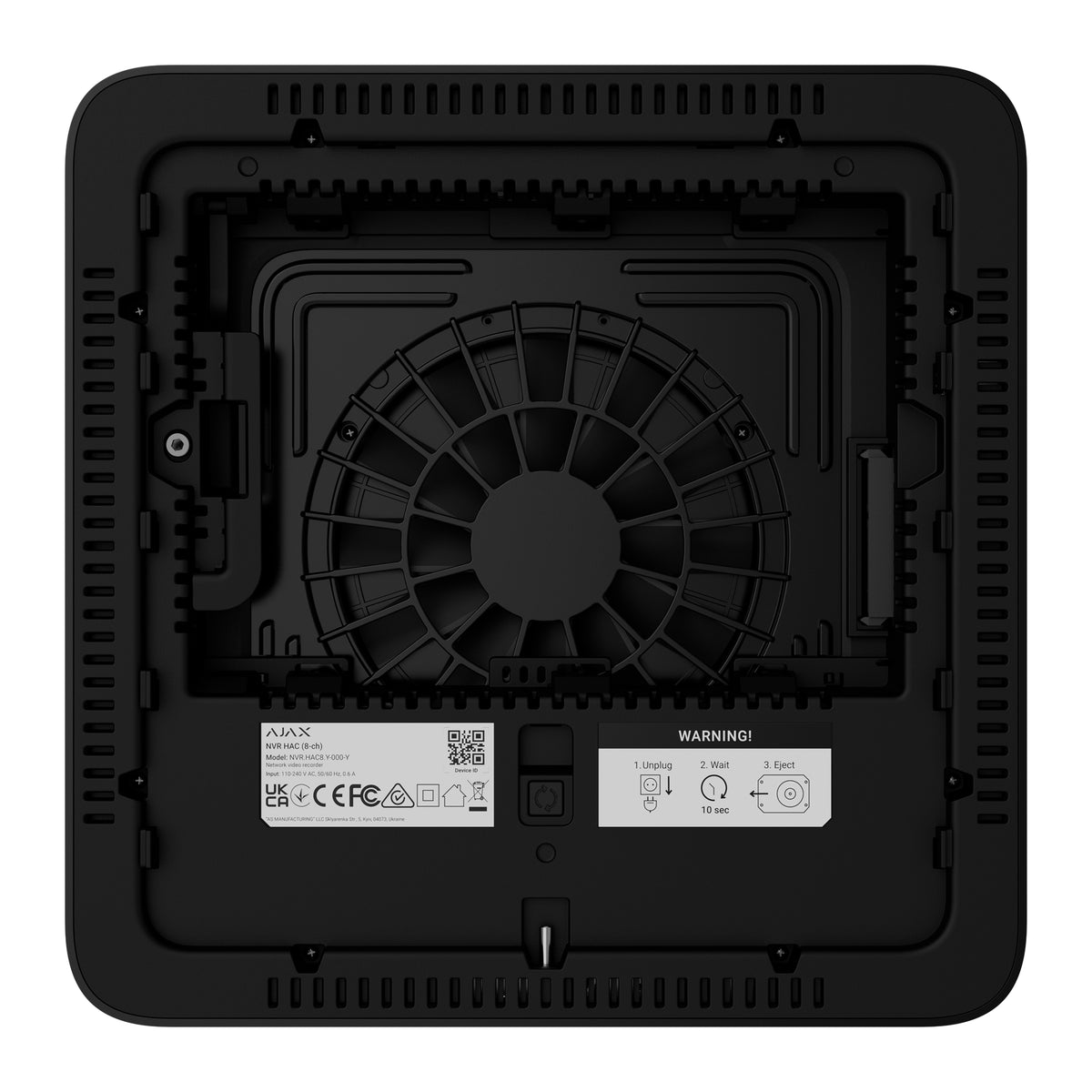

NVR HAC
8/ 16-channel network video recorder with HDMI output for indoor video surveillance systems.
Overview
-
Supports up to 16 IP cameras
-
HDMI output up to Full HD (1920 × 1080)
-
Designed for small to mid-size surveillance systems
-
Compatible with Ajax cameras and ONVIF/RTSP IP cameras
Video & recording
-
Recording resolution up to 8 MP
-
Supports H.265 and H.264 compression
-
Multiple live view layouts (1, 4, 9, 16 and custom layouts)
-
Playback of up to 16 channels simultaneously
-
Motion detection (via NVR or compatible cameras)
-
AI object detection (with supported cameras)
Storage
-

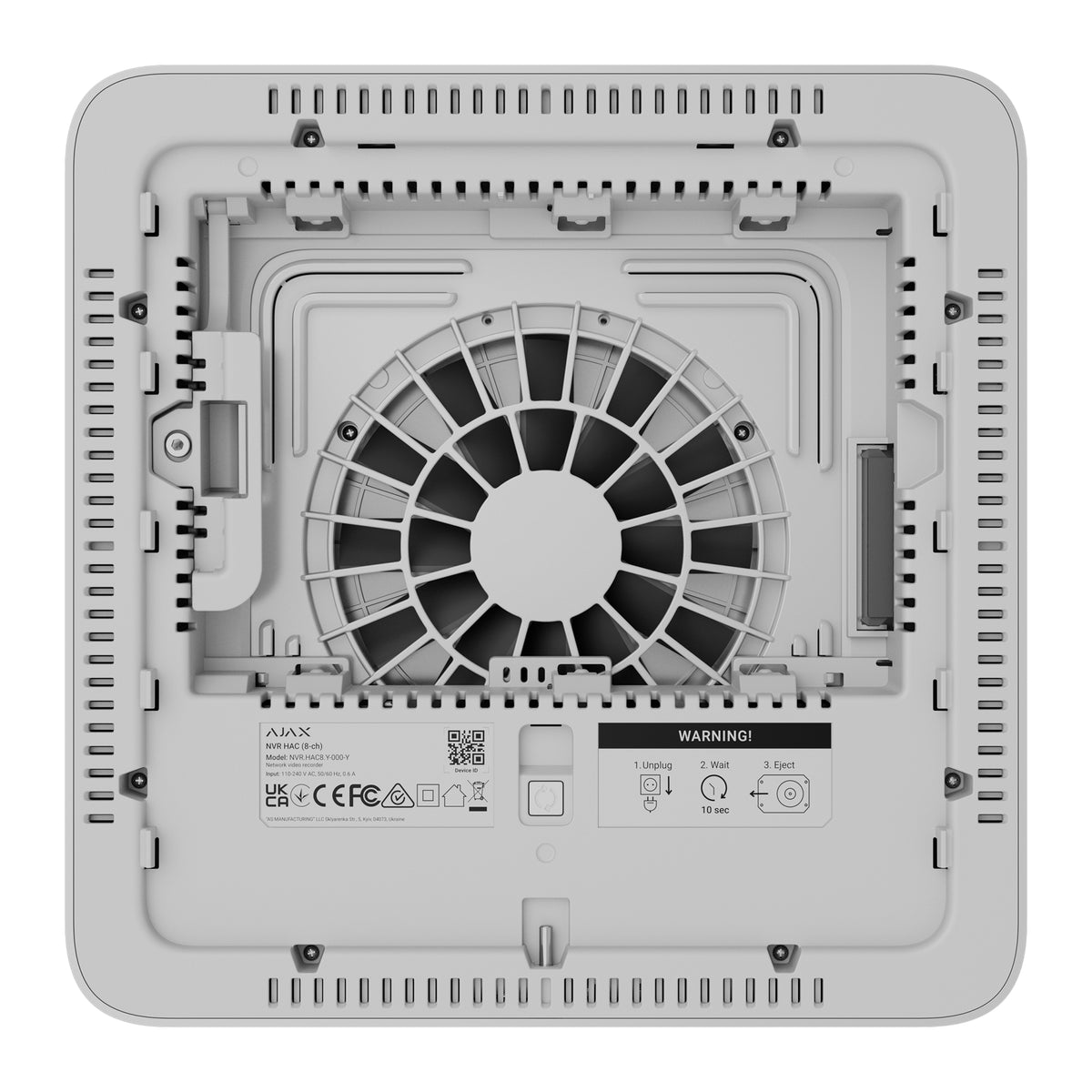

1 × SATA port (3.5” HDD)
-
Supports up to 16 TB capacity
-
Hard drive not included
Network & connectivity
-
1 × Ethernet port (10/100 Mbps)
-
2 × USB 2.0 ports (mouse, keyboard, or flash drive)
-
Supports ONVIF and RTSP protocols
-
Incoming bandwidth: up to 80 Mbps
-
Outgoing bandwidth: up to 40 Mbps
Smart features
-
Built-in video management system
-
Live video wall interface
-
Smart event filtering and quick search
-
Interactive timeline for easy playback
-
Alarm verification with Ajax system integration
-
Configurable user access and privacy settings
Power & installation
-
Power supply: 110–240 V~, 50/60 Hz
-
Maximum power consumption: up to 24 W
-
Indoor installation only
Physical specifications
-
Dimensions: 212 × 212 × 64 mm
-
Weight: 782 g (without HDD)
-
Protection class: IP20
-
Operating temperature: 0 °C to +40 °C
-
Color options: Black or White
