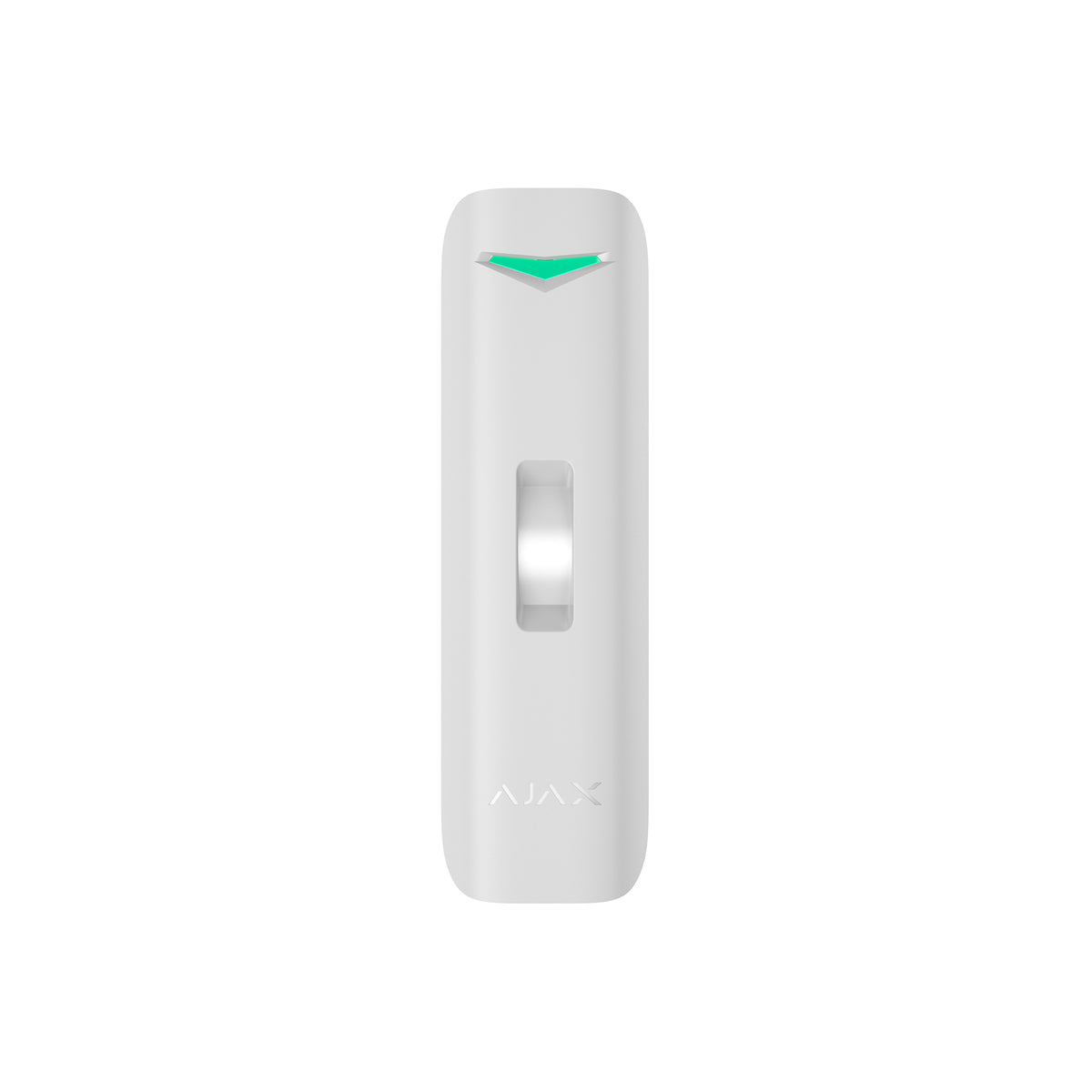

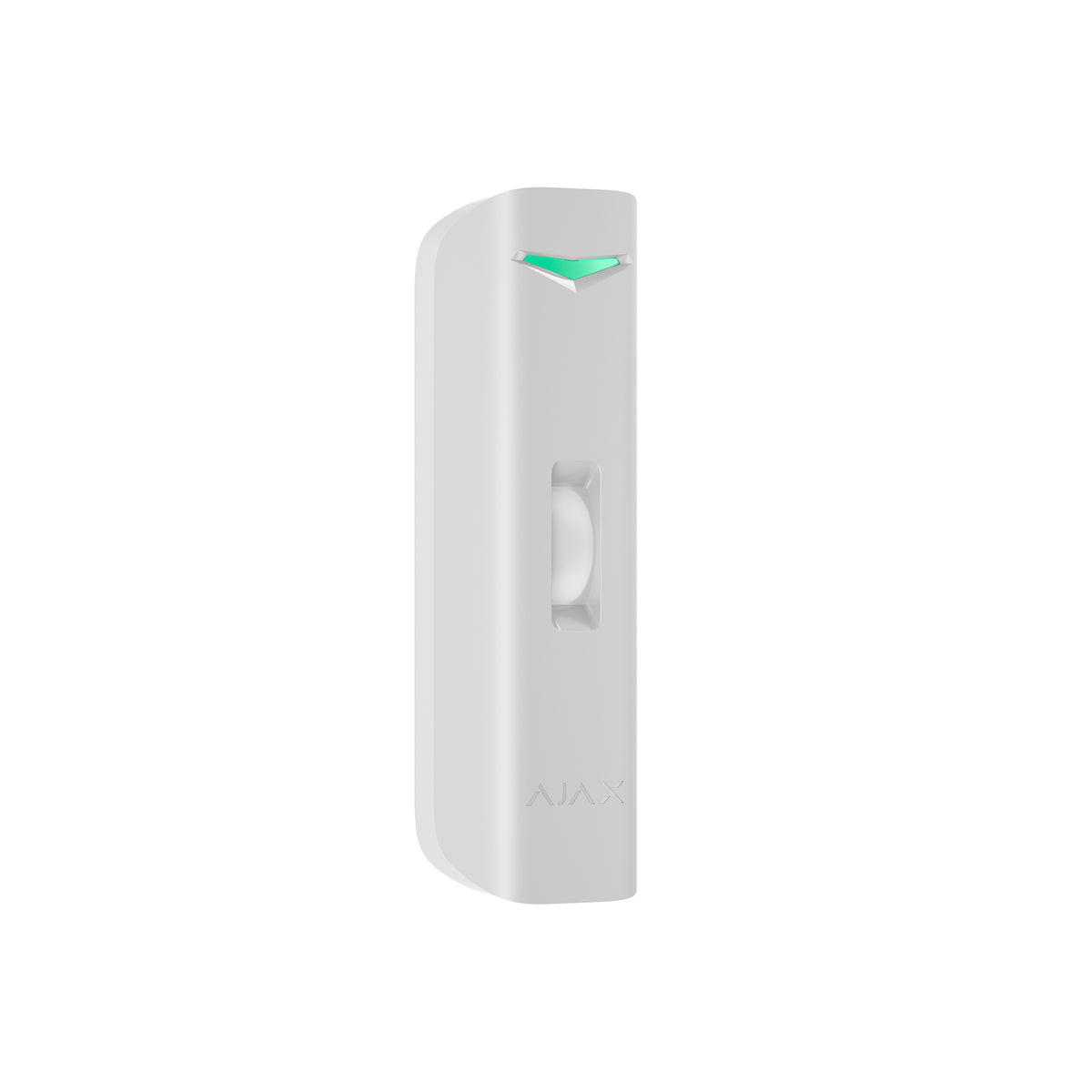

Wireless dual-technology curtain motion detector for indoor and outdoor use.
What it is
• Motion detector that uses both PIR and K-band microwave sensors to detect movement
• Designed for outdoor gates, windows, and sensitive indoor areas
• Dual detection technology helps reduce false alarms from thermal interference
Key features
• Two-way wireless communication with advanced encryption
• Tamper protection against removal or sabotage
• Anti-masking and anti-spoofing to detect attempts to block or trick the detector
• Adjustable sensitivity (3 levels) and pet immunity up to 70 cm
• Software-based false alarm prevention (SmartDetect)
• Temperature compensation for accurate detection from −25 °C to +60 °C
Detection & coverage
• Motion detection distance: up to 5 m
• Horizontal detection angle: 15°
• Vertical detection angle: 100°
• Motion speed detection: 0.3–2 m/s
• Recommended installation: ceiling (up to 5 m) or side wall (1 m)
Communication & range
• Works with Ajax hubs using Jeweller protocol
• Radio range up to 1,700 m in open space
• Frequency hopping prevents interference and jamming
• Firmware updates via Wings wireless technology
Power & battery
• 2 × CR123A batteries (pre-installed)
• Battery life up to 3 years
• Detector voltage: 6 V nominal, 4.1–6.2 V operating range
Build & environment
• Dimensions: 145 × 32 × 43 mm (with angle mount 145 × 44 × 54 mm)
• Weight: 130 g (detector), 20 g (mount)
• IP55 protection class, suitable for outdoor use
• Operating temperature: −25 °C to +60 °C
• Operating humidity: up to 95%
Download the Ajax Systems UK mini curtain jeweller spec sheet here
