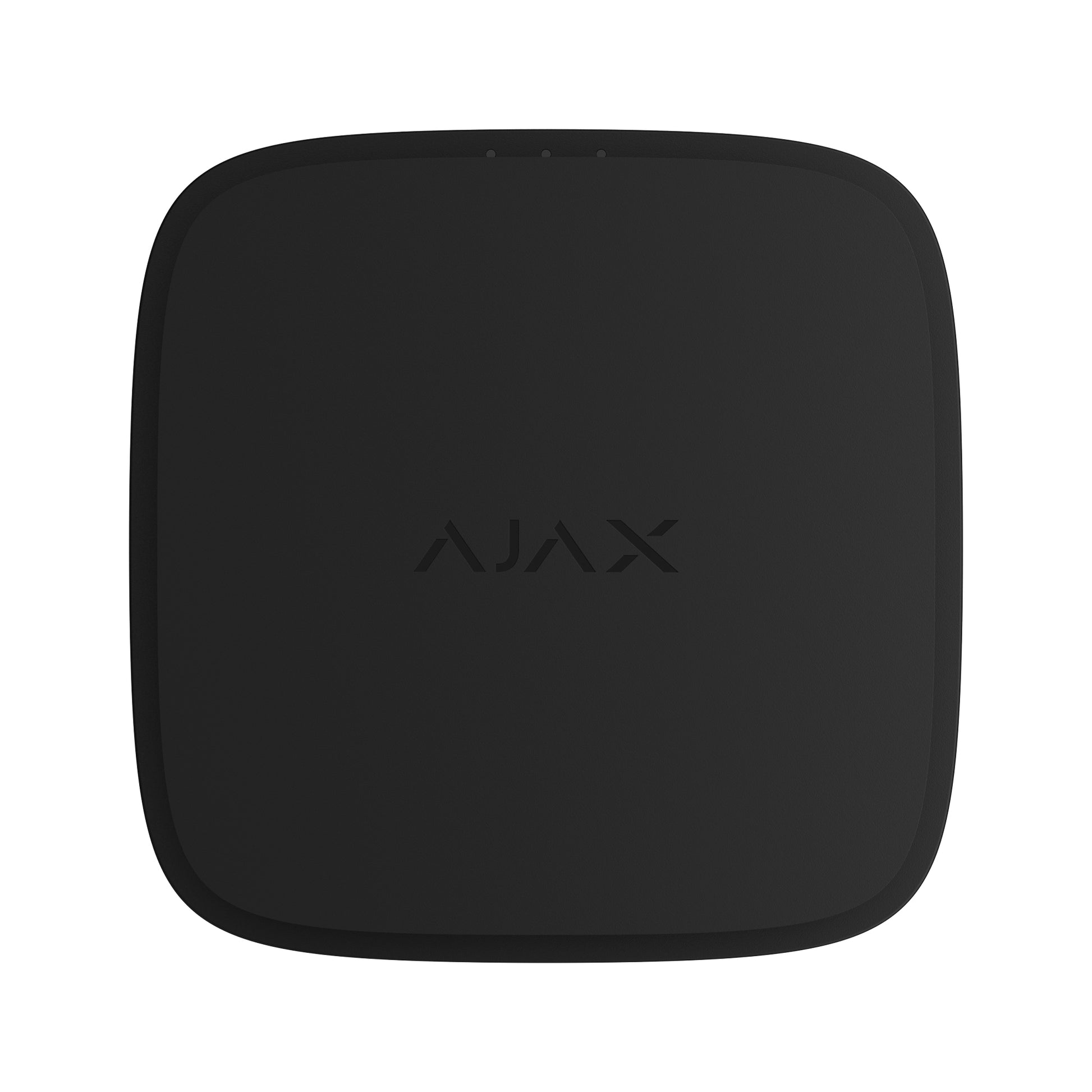

EN54 FireProtect (Heat) Jeweller
Wireless addressable heat detector designed for indoor fire detection based on temperature rise or fixed heat thresholds in Ajax systems.
Device compatibility
Works with Ajax control and indicating equipment (CIE) and compatible range extenders.
Communication
Technology: Jeweller wireless protocol
Key features:
-
Two-way communication
-
Encrypted data transmission with dynamic key
-
Instant alarm notifications
-
Remote control and configuration in Ajax apps
Frequency bands:
-
866.0–866.5 MHz
-
868.0–868.6 MHz
-
868.7–869.2 MHz
-
905.0–926.5 MHz
-
915.85–926.5 MHz
-
921.0–922.0 MHz
(Depends on sales region)
Maximum radiated power: up to 20 mW
Radio modulation: GFSK
Communication range:
up to 1,700 m in open space between the detector and control panel or range extender.
Security features:
-
Encrypted communication
-
Frequency hopping to prevent interference or jamming
Heat detection
Sensor type: 2 × thermistor
Detects dangerous temperature levels according to EN 54-5 heat detector classes.
Heat sensor modes:
-
A1, A1R, A1S
-
B, BR, BS
-
C, CR, CS
Fixed temperature detection: configurable depending on installation location.
EN54-compliant modes:
A1R, A1S, BR, BS, CR, CS.
Additional features
LED indication:
-
Red
-
Yellow
-
Green
Used to indicate detector status such as fire alarm, testing, and normal operation.
Installation
-
Designed for indoor use only
-
SmartBracket mounting panel allows rotation up to 90° after installation
Sabotage protection
-
Tamper button detects removal from mounting panel
-
SmartBracket lock prevents unauthorized removal
-
Device authentication protects against spoofing
Communication loss detection: after 36 s (depending on Jeweller settings)
Power supply
Batteries: 2 × CR123A (pre-installed)
Battery type: Huiderui CR123A, 3 V, 1,600 mAh (LiMnO₂)
Battery life: up to 6 years
Battery replacement: tool-free access
Reverse polarity protection: prevents damage if batteries are inserted incorrectly.
Enclosure
Dimensions: 124 × 124 × 48 mm
Weight: 265 g
Operating temperature: 0 °C to +50 °C
Operating humidity: up to 80%
Protection class: IP20
Flammability rating: UL 94 V-0
Color:
-
Black
-
White
