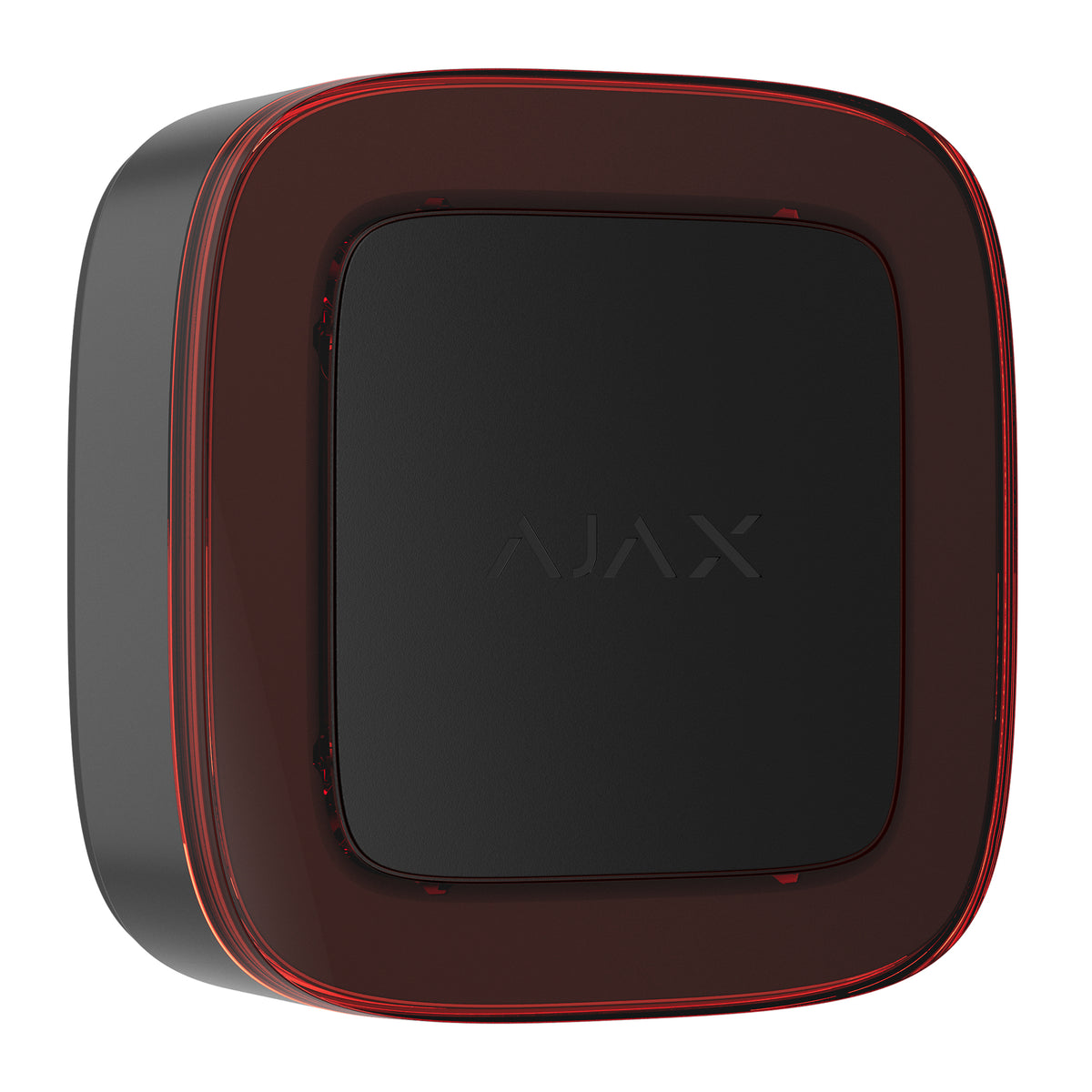

The Ajax EN54 Indicator Jeweller is a wireless addressable remote fire alarm indicator designed to provide clear, highly visible fire alarm notification across a site. Featuring a built-in LED frame, the indicator provides an intense red flashing signal when a fire alarm is triggered, making alerts immediately visible to occupants even when the fire detector itself is out of sight or access to the Ajax app is unavailable.
Using Ajax’s Jeweller wireless communication technology, the EN54 Indicator Jeweller offers a communication range of up to 1,700 m in open space, while intelligent radio technology helps maintain reliable communication through automatic power adjustment, frequency hopping and connection-loss detection.

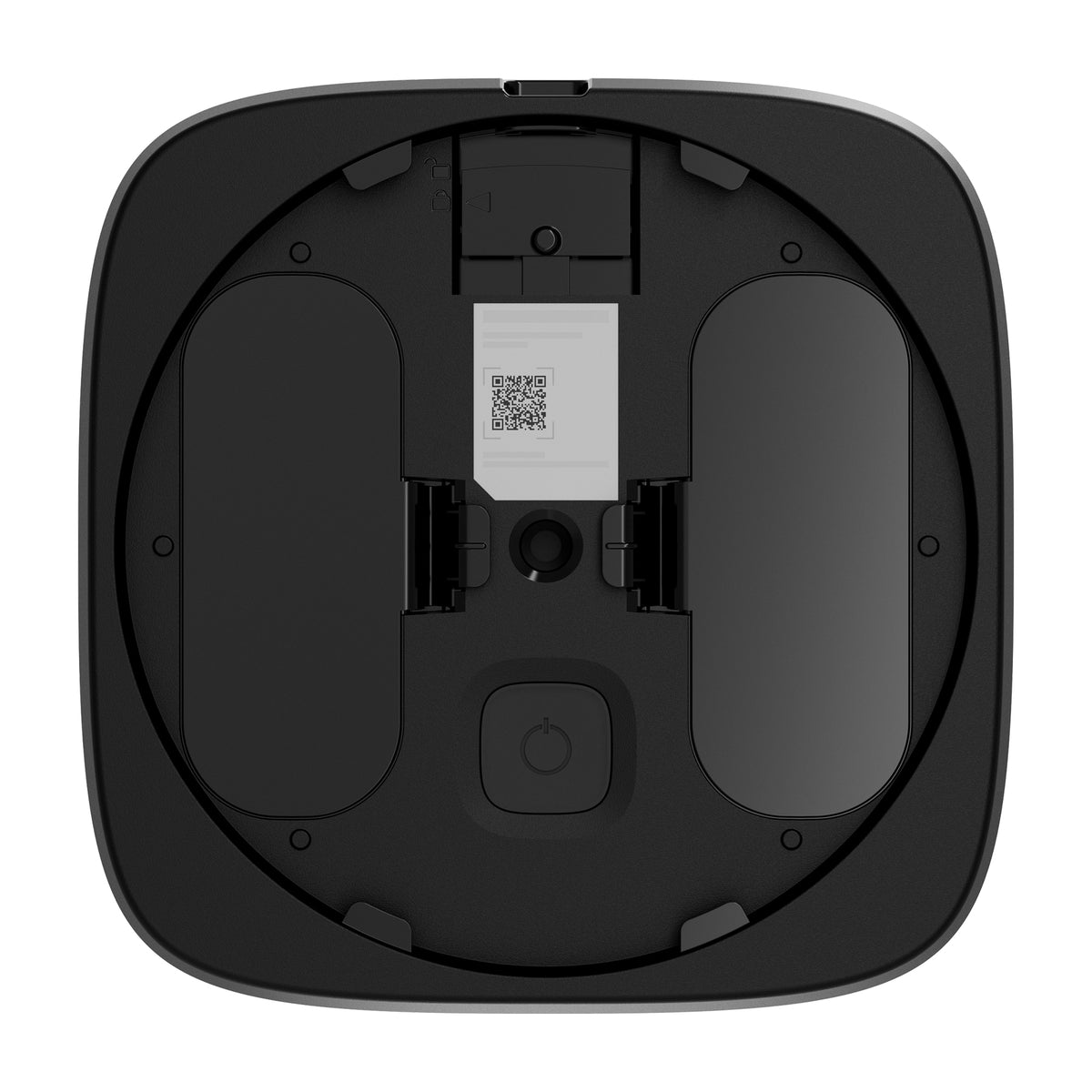

Installation is quick and straightforward, with the device added to the CIE by scanning its QR code and configured through Ajax apps. The included SmartBracket mounting panel allows installation on walls or ceilings without dismantling the enclosure, while the bracket can be rotated by up to 55° for optimal positioning.
With pre-installed CR123A batteries providing up to 5 years of operation, low-battery notifications through Ajax apps and tool-free battery replacement, the EN54 Indicator Jeweller offers a practical, low-maintenance solution for extending the visibility of fire alarm events.
Key Features
- Wireless addressable remote fire alarm indicator
- Built-in LED frame with bright red alarm indication
- Alarm activation synchronised with the fire detector
- LED indication visible from up to 6 m
- Jeweller wireless communication technology
- Wireless range of up to 1,700 m in open space
- Automatic power adjustment and frequency hopping
- Connection-loss detection
- Quick QR-code commissioning
- Configuration and testing via Ajax apps

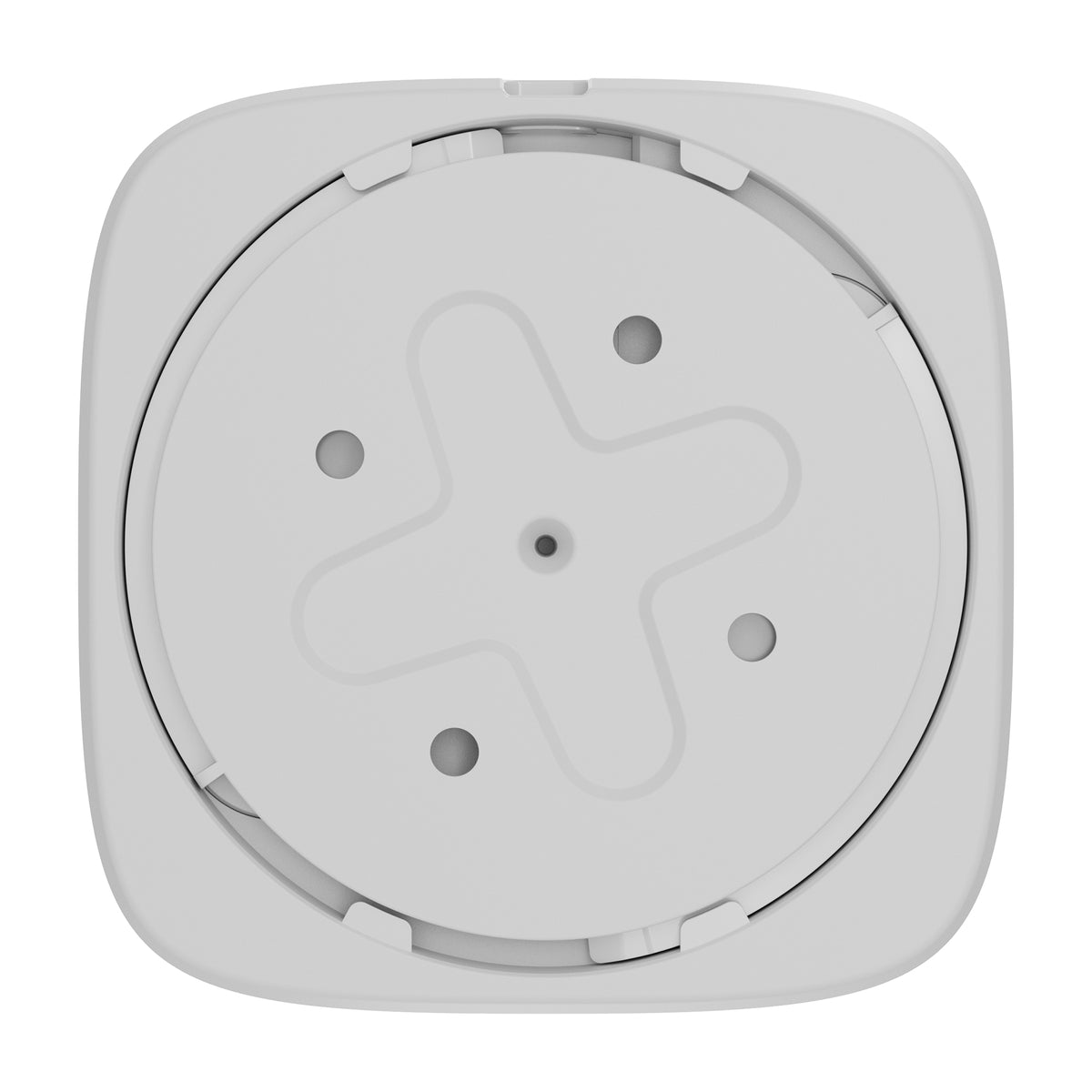

- SmartBracket mounting panel
- Suitable for wall or ceiling installation
- Up to 55° rotation on SmartBracket
- Optional bracket locking to prevent device removal

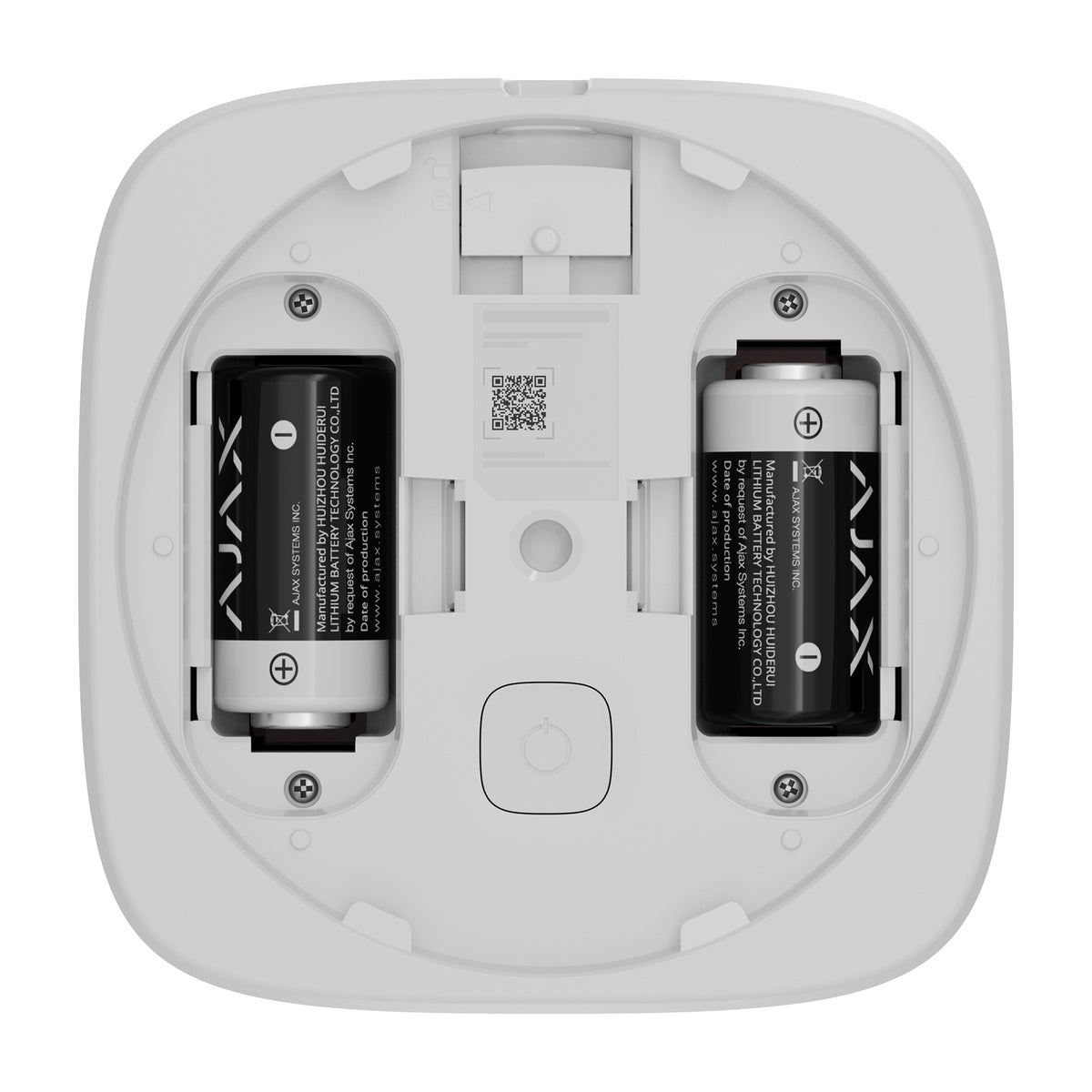

- Pre-installed 2 × CR123A batteries
- Up to 5 years battery life
- Low-battery notifications
- Tool-free battery replacement
- IP54 protection rating
- Operating temperature: −10°C to +50°C
- Available in black or white
Dimensions: 89.5 × 89.5 × 32.7 mm
Weight: 186 g
