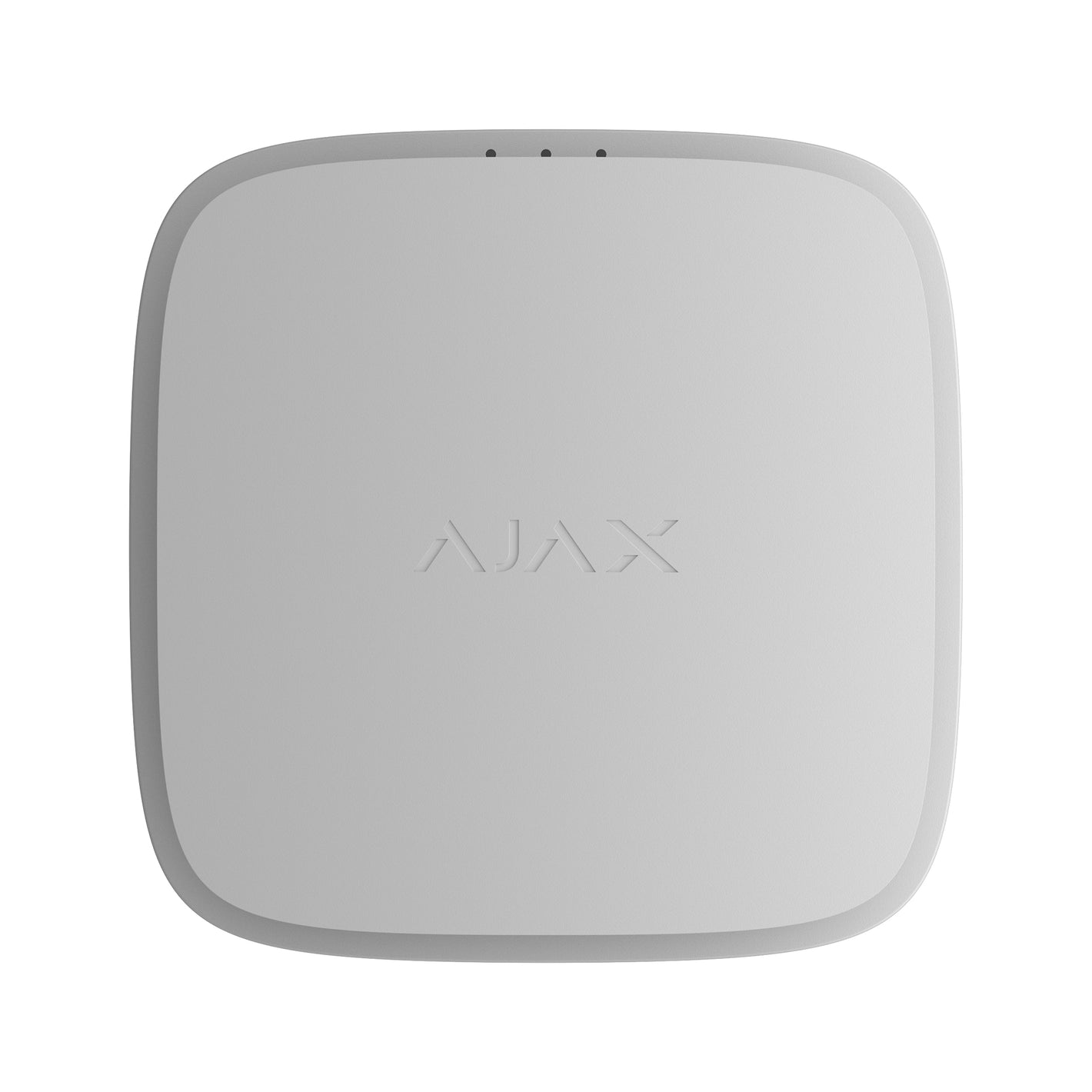

EN54 FireProtect (Smoke/Sounder) Jeweller
Wireless addressable smoke detector with a built-in fire alarm sounder. Designed for indoor fire detection and audible alarm notification within Ajax systems.
Device compatibility
Works with Ajax control and indicating equipment (CIE) and compatible range extenders.
Communication
Technology: Jeweller wireless protocol
Key features:
-
Two-way communication
-
Encrypted data transmission with dynamic key
-
Instant alarms and notifications
-
Remote configuration in Ajax apps
Frequency bands:
-
866.0–866.5 MHz
-
868.0–868.6 MHz
-
868.7–869.2 MHz
-
905.0–926.5 MHz
-
915.85–926.5 MHz
-
921.0–922.0 MHz
(Depends on sales region)
Maximum radiated power: up to 20 mW
Radio modulation: GFSK
Communication range:
up to 1,700 m in open space between the detector and control panel or range extender.
Security features:
-
Encrypted communication
-
Frequency hopping to prevent interference or jamming
Smoke detection
Sensor type: dual-spectrum optical sensor
Detection method: detects smoke particles based on size in the air.
False alarm protection:
-
Resistant to water vapor
Smoke chamber:
Patented design protects the sensor from dust, insects, and dirt.
Alarm annunciation
Alarm type: acoustic sounder
Sound level: up to 95 dB at 1 m
Sound patterns: 32 tones
Sound synchronization:
All connected devices with sounders trigger simultaneously.
Alarm test:
Allows audible alarm testing to ensure alarms are clearly heard.
Installation
-
Designed for indoor use only
-
SmartBracket mounting panel allows the detector to be rotated up to 90° after installation
Sabotage protection
-
Tamper button detects removal from mounting panel
-
SmartBracket lock prevents unauthorized removal
-
Device authentication protects against spoofing
Communication loss detection: after 36 s (depending on Jeweller settings)
Power supply
Batteries: 2 × CR123A (pre-installed)
Battery type: Huiderui CR123A, 3 V, 1,600 mAh (LiMnO₂)
Battery life: up to 5 years
Battery replacement: tool-free access
Reverse polarity protection: prevents damage if batteries are inserted incorrectly.
Enclosure
Dimensions: 124 × 124 × 48 mm
Weight: 295 g
Operating temperature: 0 °C to +50 °C
Operating humidity: up to 80%
Protection class: IP21C
Flammability rating: UL 94 V-0
Color:
-
Black
-
White
